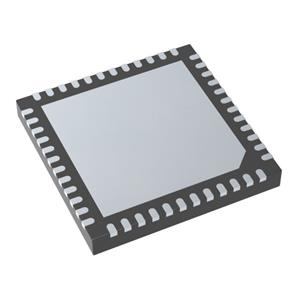

The NCK2982RHN is an RF transceiver with an embedded microcontroller for use in automotive environments. Full functionality including customer programmable non-volatile programming memory is integrated in a single package. The device is suitable for use in automotive key card and body control module type applications. Integrated microcontroller allowing deployment of complete subsystems. Full device functionality including some customer programmable non-volatile memory is integrated within a single CMOS chip.

Features

● RF transceivers

● Multi-channel transceiver solutions

● 315, 345, 426, 434, 447, 868, 915, 950 MHz... Single-IC frequency bands

● Simultaneous parallel reception of up to 3 channels (in the 1.8 MHz IF band)

● 13 channel filter bandwidth options (10 - 600 kHz)

● Japanese (12.5 kHz) ARIB compliant

● Up to 200 kchips/s (FSK / ASK) operating frequency

● High FSK/ASK sensitivity: -123 dBm (10 kHz bandwidth)

● Low receiver power consumption (14 mA in single-channel mode, 17 mA in 3-channel parallel mode)

● Up to +12 dBm output power

Applications

● Remote keyless entry (RKE) systems

● Passive keyless entry systems (PKE)

● Remote start, remote heating and other remote services (LR) FSK/ASK (with optional additional external PA)

● Tyre Pressure Monitoring System (TPMS)

● Wireless Diagnostics (WD)
