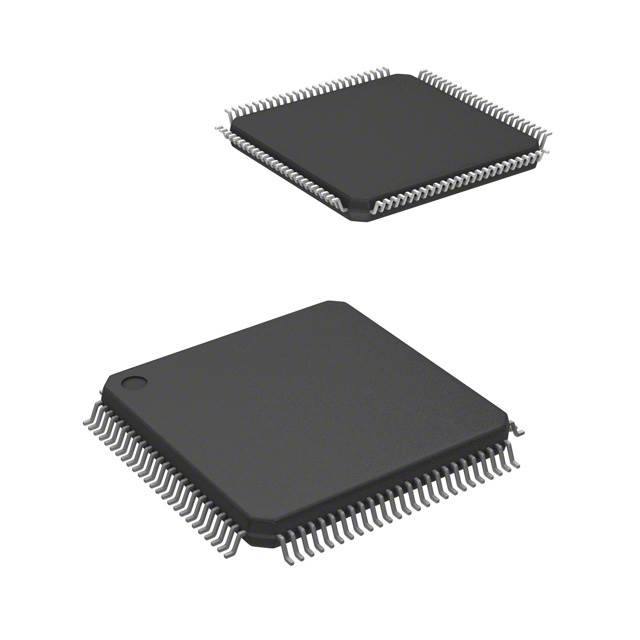

For picture reference, please see the specifications
< >

Commodity Model:SPC5602PEF0VLL6

Trade Name:SPC5602PEF0VLL6

Data Manual:SPC5602PEF0VLL6.pdf

Brand:NXP

Particular Year:23+

Package:LQFP-100

Delivery Date:New and Original

Stock: 10000pcs

Quantity:
Online Inquiry

Contacts:

E-Mail:

Contact Number:

Corporate Name:

Product Parameters

Manufacturer
NXP
Model
SPC5602PEF0VLL6
Package
LQFP-100
Describe
Ultra-reliable MPC560xP MCU for automotive and industrial safety applications

Product Description

The MPC560xP family of MCUs is aimed at advanced chassis, automotive and industrial applications. They enable electronic systems to replace heavy-duty hydraulic and engine drive systems.

- Ensure compliance with the latest safety requirements for functional safety applications

- Reduce system complexity, development time and bill of materials (BOM) costs

- Improve fuel efficiency

- Reduces greenhouse gas emissions


SPC5602PEF0VLL6 Specifications

Core Processor: e200z0h

Core specification: 32-bit single core

Speed: 64MHz

Connectivity: CANbus, LINbus, SCI, SPI

Peripherals: DMA, POR, PWM, WDT

Number of I/O: 79

Program memory capacity: 256KB (256K x 8)

Programme memory type: Flash

EEPROM Size: 4K x 16

RAM Size: 20K x 8

Voltage - Supply (Vcc/Vdd): 3V ~ 5.5V

Data Converter: A/D 16x10b

Oscillator Type: Internal

Operating Temperature: -40°C ~ 105°C (TA)

Mounting Type: Surface Mount

Package/Case: 100-LQFP

Supplier Device Package: 100-LQFP (14x14)


Features

Power Architecture industry standard processor

Cross-trigger unit to manage sample timing and reduce CPU burden

Fault acquisition unit to monitor and manage fault events

Reliable high-speed communication with FlexRay™ and CAN/Safety ports

Error Correction Code (ECC) on RAM and flash memory to correct memory errors

Highly accurate pulse width modulation (PWM)

Two eTimers

Two ADCs

Two PLLs
