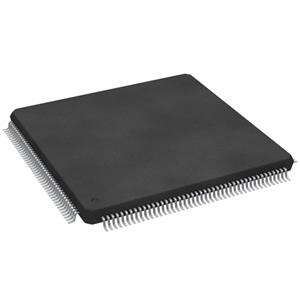

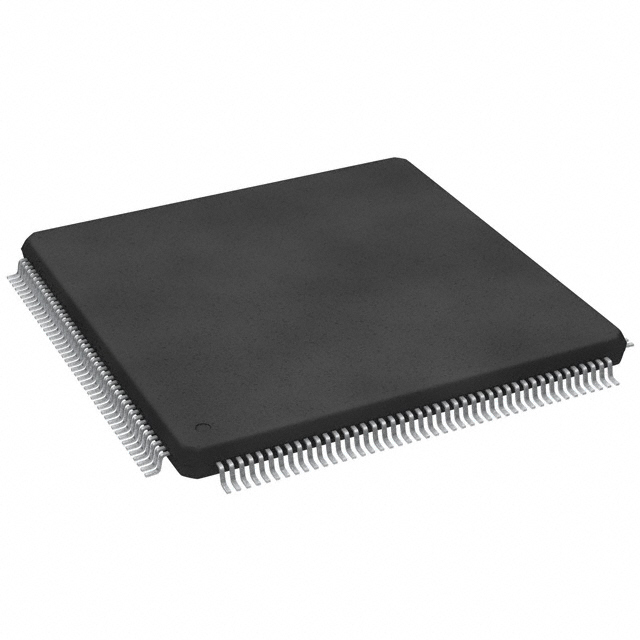

For picture reference, please see the specifications
< >

Commodity Model:SPC5645BF0VLU1R

Trade Name:SPC5645BF0VLU1R

Data Manual:SP5747CFK0AVMJ6R.pdf

Brand:NXP

Particular Year:23+

Package:LQFP-176

Delivery Date:New and Original

Stock: 1000pcs

Quantity:
Online Inquiry

Contacts:

E-Mail:

Contact Number:

Corporate Name:

Product Parameters

Manufacturer
NXP
Model
SPC5645BF0VLU1R
Package
LQFP-176
Describe
Ultra-Reliable MPC564xB-C MCU for Automotive and Industrial Control Applications

Product Description

The SPC5645BF0VLU1R MCU has an extremely high level of integration to meet the growing demand for a stronger feature set and more storage space for high-end body control modules (BCMs), gateways and industrial control applications.


SPC5645BF0VLU1R Attributes

Core Processor: e200z4d

Core specification: 32-bit single core

Speed: 120MHz

Connectivity: CANbus, I²C, LIN, SCI, SPI

Peripherals: DMA, POR, PWM, WDT

Number of I/O: 147

Program memory capacity: 2MB (2M x 8)

Programme memory type: Flash

EEPROM Size: 64K x 8

RAM Size: 160K x 8

Voltage - Supply (Vcc/Vdd): 3V ~ 5.5V

Data Converter: A/D 27x10b, 5x12b

Oscillator Type: Internal

Operating Temperature: -40°C ~ 105°C (TA)

Mounting Type: Surface Mount

Package/Case: 176-LQFP

Supplier Device Package: 176-LQFP (24x24)


Features

High performance dual core option

e200z4 up to 120 MHz

e200z0 up to 80 MHz

Flash: up to 3 MB

EEPROM: 64 KB DataFlash®

RAM: up to 256 KB

CSE: Security module for secure and trusted transfer of information between communicating parties.

Timer: 16 bit - up to 64 channels

ADC: 10 and 12 bit

Ethernet

FlexRayTM

10 LINFlex

8 DSPI

6 FlexCAN

Expandable and compatible with MPC560xB/C series products
