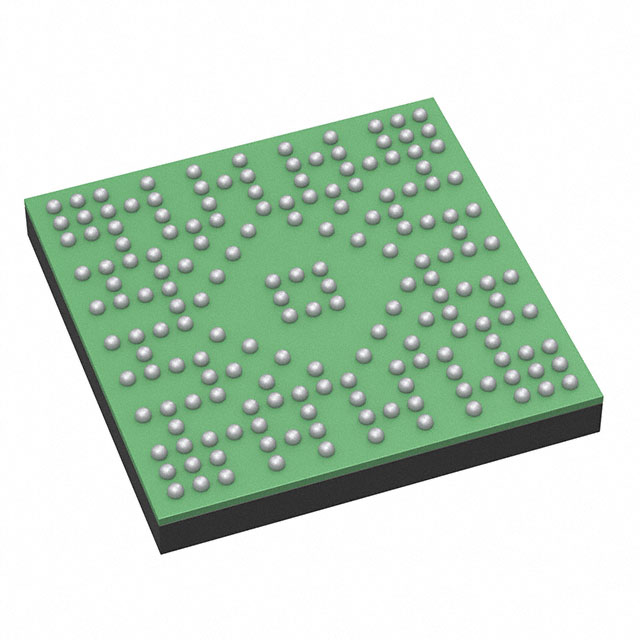

K32L3A60VPJ1AT is an ultra-low-power, dual core solution ideal for applications that require a high performance Cortex-M4F processor to run the application and an efficient Cortex-M0+ to run low power operations such as sensor data collection and perform low level operations that don't need the full power of the M4 core.

Product Features

Core Processor

Arm Cortex-M4F core up to 72 MHz (high-speed run up to 72 MHz) for application code

Arm Cortex-M0+ core up to 72 MHz (high-speed run up to 72 MHz) for low power operations

Memories

1.25 MB program flash memory, 1 MB on the M4F domain and 256 KB on the M0+ domain

384 KB SRAM, 256 KB on the M4F domain and 128 KB on the M0+ domain

48 KB ROM with built-in bootloader

32 B system register file and 32 B RTC register file

External bus interface (FlexBUS) for off-chip memory expansion

Power Management

Bypass mode: 1.71 V to 3.6 V

Buck DC-DC converter: 2.1 V to 3.6 V

Core voltage bypass: 1.14 V to 1.45 V direct supply to core, bypassing internal regulator

Independent VDDIO1 and VDDIO2 supply: 1.71 V to 3.6 V

Independent VBAT(RTC): 1.71 V to 3.6 V
