For picture reference, please see the specifications
< >

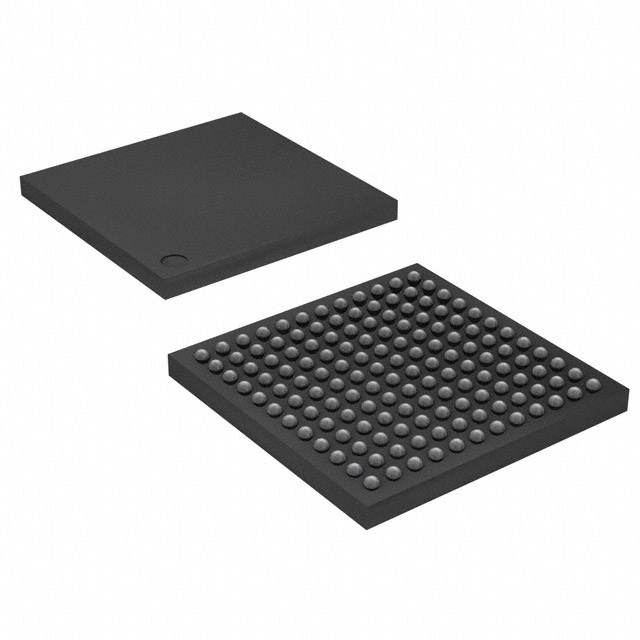

Commodity Model:MK20DX256VMD10

Trade Name:MK20DX256VMD10

Data Manual:MK20DX256VMD10.pdf

Brand:NXP

Particular Year:23+

Package:LBGA144

Delivery Date:New and Original

Stock: 2500pcs

Quantity:
Online Inquiry

Contacts:

E-Mail:

Contact Number:

Corporate Name:

Product Parameters

Manufacturer
NXP
Model
MK20DX256VMD10
Package
LBGA144
Describe
ARM® Cortex®-M4 Kinetis K20 Microcontroller IC 32-bit Single Core 100MHz 256KB (256K x 8) Flash

Product Description

The MK20DX256VMD10 32-bit microcontrollers are low-power MCUs that offer significant BOM savings through intelligent on-chip integration.


Features

Ultra-low power consumption

10 low-power modes providing power and clock gating for preferred peripheral activity and recovery times. Stop current <2 µA, run current <350 uA/MHz, stop mode wake-up time 4 µs

Full memory and analogue operation even when operating voltage drops to 1.71 V, extending battery life

Low-leakage wake-up unit with up to 8 built-in modules and 16 pins as wake-up source for low leakage stop (LLS) mode/very low leakage stop (VLLS) mode

Low-power timer to support continuous system operation in low-power states

Flash, SRAM and FlexMemory

128 KB - 512 KB Flash memory. Supports fast access with high reliability and level 4 security protection

SRAM 32 KB - 128 KB

FlexMemory: 32 bytes - 4 KB user-segmentable byte write/erase EEPROM for datasheet/system data. EEPROM that can be erased more than 10M times and Flash memory with a write time of only 70 µs (no data loss or corruption in the event of a power failure). Programming and erasing functions can be performed without user or system intervention, and the device remains fully operational down to an operating voltage of 1.71V. Up to 256 KB of space is available for storing additional programme code, data or EEPROM backups.

Mixed Signal Functions

Two high-speed 16-bit analogue-to-digital converters (ADCs) with configurable resolution Single or differential output mode operation for improved noise rejection levels 500 ns conversion time achievable with programmable delay module trigger function

Two 12-bit digital-to-analogue converters (DACs) to generate analogue waveforms for audio applications

Three high-speed comparators provide fast and accurate motor overcurrent protection by placing pulse width modulation (PWM) in a safe state

Analogue reference voltage provides an accurate reference for analogue modules, ADCs and DACs, replacing external reference voltages and reducing system cost

Performance

Arm® Cortex®-M4 core with DSP, 100 MHz clock, single-cycle MAC, and Single Instruction Multiple Data (SIMD) extensions

Up to 16 channels of DMA for peripherals and memory for lower CPU load and faster system throughput

Cross switches support concurrent multi-master device bus accesses for increased bus bandwidth

Separate flash banks allow concurrent execution of code and firmware updates without compromising performance or requiring complex coding routines

Timing and Control

3 FlexTimers with 12 channels. Hardware dead-time insertion and quadrature decoding for motor control

Carrier modulation timer for generating infrared waveforms in remote control applications

4-channel 32-bit cycle interrupt timer provides a time base for real-time OS task schedulers, as well as a trigger source for ADC conversions and programmable delay modules

Human Machine Interface

Hardware touch-sensing interface with up to 16 inputs. Operates in all low-power modes (adds very little current when enabled). Avoids software polling methods through hardware implementation. High sensitivity, allowing the use of film up to 5 mm thick

Data connectivity and communication

USB 2.0 OTG (Full Speed). Device charging detection optimises charging current/time for portable USB devices, extending battery life. Low-voltage regulator provides up to 120 mA, 3.3 V off-chip power to external components via 5 V inputs

Up to six IrDA-enabled UARTs, one of which has ISO7816 smart card support Supports a variety of data sizes, formats, and transmit/receive settings to meet a wide range of industrial communication protocols

Inter-IC audio transfer (I2S) serial interface for accessing audio systems

Two CAN modules for industrial network bridging

Up to three DSPIs and two I2Cs

Reliability, functional safety and information security

Memory protection unit provides memory protection for all master devices on the cross switches and improves software reliability

Cyclic redundancy check engine verifies memory contents and communication data for increased system reliability

Clock-independent COP prevents clock drift or code runaway for fail-safe applications (e.g., IEC 60730 safety standard for household appliances)

External watchdog monitor puts output pins in a safe state if a watchdog event occurs External components

This product is included in NXP's long-term product availability programme and is guaranteed for at least 10 years from launch

External peripheral support

The FlexBus external bus interface provides interface options for peripherals such as memory and graphics displays. Up to 6 chip select signals and 2GB of addressable space are supported.

Secure digital host controller supports SD, SDIO, MMC or CE-ATA cards for software upgrades in applications or storage of media files.

Associated Products

Model

Brand

Package

Quantity

Describe

LPC804M101JHI33

NXP

HVQFN-33

6000

ARM Microcontroller - MCU Cortex-M0 32KB 4KB 2 I2c, SPI, 30 GPIOs

SAK-TC1791F-512F240EP AB

INFINEON

BGA

3000

TriCore™ TC17xx Microcontroller IC 32-bit Single Core 240MHz 4MB (4M x 8) Flash Memory PG-LFBGA-292-6

CY8C4025LQE-S413

Cypress

QFN-40

2000

PSoC 4000S Series 32-bit ARM Cortex-M0+ Microcontrollers

CY8C4025LQA-S413

Cypress

QFN-40

2000

PSoC 4000S Series 32-bit ARM Cortex-M0+ Microcontrollers

CY8C4024LQE-S413

Cypress

QFN-32

2000

PSoC 4000S Series 32-bit ARM Cortex-M0+ Microcontrollers

CY8C4024LQA-S413

Cypress

QFN-24

2000

PSoC 4000S Series 32-bit ARM Cortex-M0+ Microcontrollers

CY8C4024LQS-S413

Cypress

QFN-40

2000

ARM® Cortex®-M0+ null microcontroller IC 32-bit 24MHz 16KB (16K x 8) flash memory 40-QFN (6x6)

MSPM0G3507SDGS28R

TI

VSSOP-28

5000

80MHz, 32-bit ARM® Cortex®-M0+ Microcontroller IC, VSSOP-28

MSPM0G3506SDGS28R

TI

VSSOP-28

5000

Mixed Signal Microcontroller - 32-bit ARM® Cortex®-M0+ Microcontroller IC, VSSOP-28

MSPM0G3505SDGS28R

TI

VSSOP-28

5000

Mixed Signal Microcontroller - 32-bit ARM® Cortex®-M0+ Microcontroller IC, VSSOP-28
