The LPC54605J512ET100E 32-bit microcontrollers (MCUs) feature a rich peripheral set, extremely low power consumption, and enhanced debugging capabilities. The LPC546xx MCU family features an ARM® Cortex®-M4 core for Ethernet support, a TFT LCD controller and two CAN FD modules.Designed for flexibility and performance scalability, the LPC546xx MCUs deliver performance up to 180MHz while maintaining power efficiency as low as 120uA/MHz. With up to 21 communication interfaces, the LPC546xx MCUs address the HMI and connectivity needs of next-generation IoT applications.

Product Attributes

Manufacturer: NXP

Product Category: ARM Microcontrollers - MCUs

Family: LPC546xx

Mounting Style: SMD/SMT

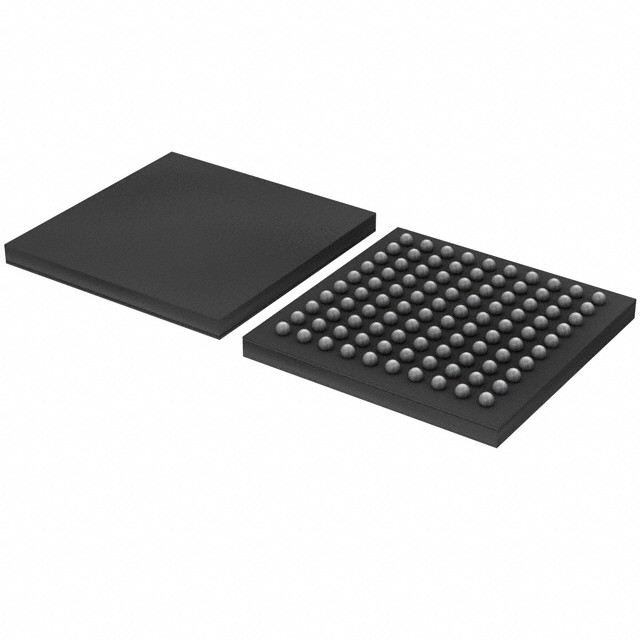

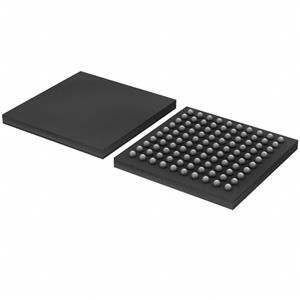

Package / Case: TFBGA-100

Core: ARM Cortex M4

Program memory size: 512 kB

Data bus width: 32 bit

ADC resolution: 12 bit

Maximum clock frequency: 180 MHz

Number of inputs/outputs: 64 I/Os

Data RAM size: 200 kB

Supply voltage - min: 1.71 V

Supply voltage - max: 3.6 V

Minimum operating temperature: - 40 C

Maximum operating temperature: + 105 C

Data Ram type: SRAM

Data ROM size: 16 kB

Data Rom Type: EEPROM

Interface Type: I2C, I2S, SPI, USART

Humidity sensitivity: Yes

Programme memory type: Flash
