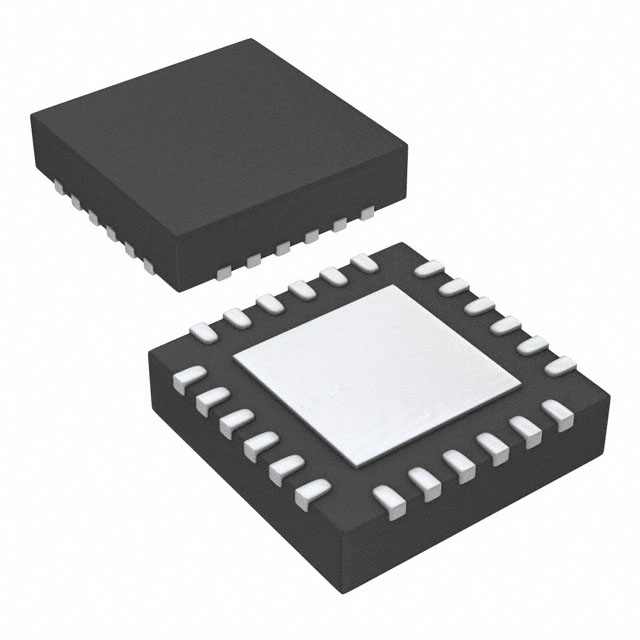

The LPC8N04FHI24Z 32-bit Arm® Cortex®-M0+ microcontroller provides an entry-level connectivity solution for embedded applications with an integrated near-field communication (NFC) interface with energy harvesting.The LPC8N04FHI24Z microcontroller offers a wide range of features, including multiple power-saving modes, and selectable CPU frequencies (up to 8MHz) for ultra-low power consumption. Peripherals on the LPC8N04FHI24Z microcontroller include 32kB of Flash memory, 8kB of SRAM, 4kB of EEPROM, an I2C, an SPI/SSP and up to 12 general purpose I/O pins.

Product Attributes

Core Processor : ARM® Cortex®-M0+

Core specification: 32-bit single core

Speed: 8MHz

Connectivity: I²C, SPI

Peripherals: undervoltage detection/reset, POR, PWM, WDT

Number of I/O: 12

Program memory capacity: 32KB (32K x 8)

Programme memory type: Flash

EEPROM Size: 4K x 8

RAM Size: 8K x 8

Voltage - Supply (Vcc/Vdd): 1.72V ~ 3.6V

Oscillator Type: Internal

Operating Temperature: -40°C ~ 85°C (TA)

Mounting Type: Surface Mount

Package/Shell: 24-VFQFN Exposed Pad

Supplier Device Package: 24-HVQFN (4x4)
