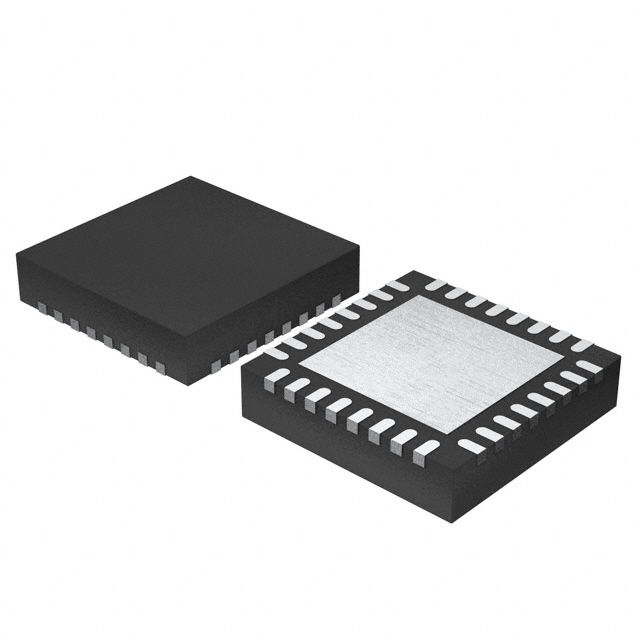

The MKL02Z16VFM4 microcontroller is the entry-level product in the Kinetis L-Series MCU product family and supports migration from 8-bit to 32-bit Kinetis L-Series MCUs.The devices are configured with a minimum of 8KB of Flash memory and are available in a number of small footprint packages.The Kinetis KL0x MCU family operates at 48MHz, achieving the best balance of performance The Kinetis KL0x MCU family operates at 48MHz and offers an optimal balance of performance and power consumption, with more than nine flexible low-power modes to choose from, enabling low dynamic power consumption and best-in-class quiescent current consumption.

Function

Ultra-low power consumption

Next generation 32-bit Cortex-M0+ core: twice the CoreMark/mA power efficiency score compared to the nearest 8/16-bit architecture

Fast single-cycle I/O port access facilitates bit banging and software protocol emulation, preserving the "experience" of an 8-bit device.

Multiple flexible low-power modes, including a new computational clocking option that reduces dynamic power consumption by placing external settings in asynchronous stop mode

LPUART, SPI, I2C, ADC, DAC, LP Timer and DMA support low-power mode operation without waking up the kernel

Memory

32 KB Flash with 64-byte cache, 4 KB RAM

Security circuitry prevents unauthorised access to RAM and Flash contents

8 KB ROM and built-in bootloader simplify MCU programming and support easy flash memory upgrades

Performance

Cortex-M0+ core, delivering a core frequency of 48 MHz over the full operating voltage and temperature range (-40ºC to +105ºC)

Bit manipulation engine for improved bit processing in peripheral modules

Thumb instruction set combines high code density with 32-bit performance

Up to 4 channels of DMA for peripherals and memory for lower CPU load and faster system throughput

Clock-independent COPs prevent clock skew or runaway code for fail-safe applications

Mixed Signal

12-bit ADC with configurable resolution, sample time and conversion speed/power

Built-in temperature sensor

High-speed comparator with built-in 6-bit DAC

12-bit DAC with DMA support

Timing and Control

One 6-channel and one two-channel 16-bit low-power timer PWM modules with DMA support

Two 32-bit cycle interrupt timers to provide a time base for real-time OS task schedulers or a trigger source for ADC conversions

Low-power timer capable of operating in all power modes except VLLS0

Real-time real-time clock with calendar

Human-machine interface

Capacitive touch sensor interface supports up to 16 external electrodes and DMA data transfers

General-purpose IOs with pin interrupt support, DMA request function and other pin control options

Connectivity and Communication

DMA-enabled I2C at rates up to 100 kbps, compatible with SMBus V2 features

LPUART and SPI with DMA support
