The LPC1837JET100E is an Arm® Cortex®-M3-based microcontroller for embedded applications.The Arm Cortex-M3 is a next-generation core that offers system-enhancing features such as low power consumption, enhanced debugging features, and provides high-level block integration support.

The LPC1837JET100E CPU operates at up to 180 MHz.The Arm Cortex-M3 CPU features a 3-stage pipeline and Harvard architecture with separate local instruction and data buses, as well as a third bus for system peripherals.The Arm Cortex-M3 CPU also includes an internal prefetch unit to support branch speculation.

Product Specification

Product Category: ARM Microcontrollers - MCUs

Family: LPC183x

Mounting Style: SMD/SMT

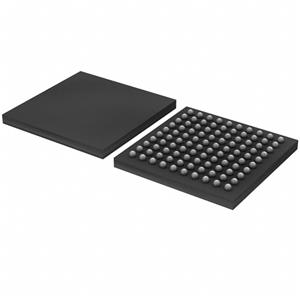

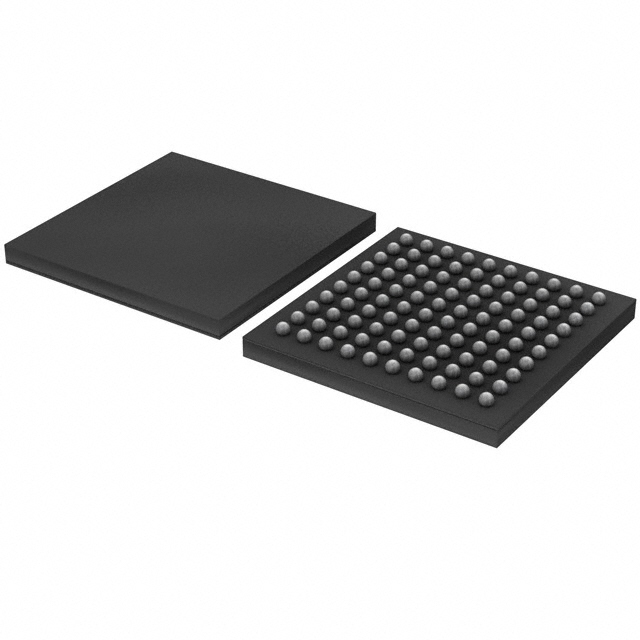

Package / Case: TFBGA-100

Core: ARM Cortex M3

Program memory size: 1 MB

Data bus width: 32 bit

ADC resolution: 2 x 10 bit

Maximum clock frequency: 180 MHz

Number of inputs/outputs: 49 I/Os

Data RAM size: 136 kB

Supply voltage - min: 2.4 V

Supply voltage - max: 3.6 V

Minimum operating temperature: - 40 C

Maximum operating temperature: + 105 C

Analogue supply voltage: 2.4 V to 3.6 V, 3.3 V

DAC resolution: 10 bit

Data Ram type: SRAM

Data ROM size: 16 kB

Data Rom Type: EEPROM

I/O Voltage: 2.4 V to 3.6 V

Interface type: CAN, Ethernet, I2C, QSPI, UART, USART, USB

Humidity sensitivity: Yes

Number of ADC channels: 4 Channel

Number of Timers/Counters: 4 Timer

Operating supply voltage: 3.3 V

Processor Family: LPC183x

Product: MCUs

Product Type: ARM Microcontrollers - MCUs

Programme memory type: Flash

Factory Package Quantity: 260

Sub Category: Microcontrollers - MCUs

Watchdog Timer: Watchdog Timer

Unit Weight: 165.641 mg
