The LPC822M101JDH20J 32-bit Arm® Cortex®-M0+ MCUs are designed to extend integration on the LPC81x with a larger memory footprint, allowing for a doubling of the maximum Flash and SRAM size.The LPC82x features three select peripherals for easy conversion to 32-bit space. In addition, this switch matrix gives users the flexibility to map pins to simplify component routing on the PCB.

The LPC822M101JDH20J MCUs feature an SCTimer that can be configured to generate various timing or PWM waveforms without CPU intervention. To simplify serial communication requirements, the pattern matching engine can be configured to generate user-configurable Boolean interrupts on eight pins.

Product Attributes

Product Category: ARM Microcontrollers - MCUs

Family: LPC82x

Mounting Style: SMD/SMT

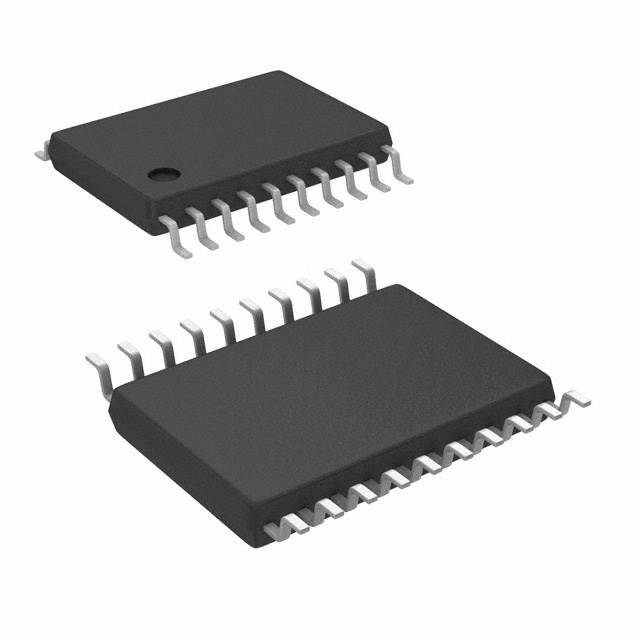

Package / Case: TSSOP-20

Core: ARM Cortex M0+

Program memory size: 16 kB

Data bus width: 32 bit

ADC resolution: 12 bit

Maximum clock frequency: 30 MHz

Number of inputs/outputs: 16 I/Os

Data RAM size: 4 kB

Supply voltage - min: 1.8 V

Supply voltage - max: 3.6 V

Minimum operating temperature: - 40 C

Maximum operating temperature: + 105 C

Data Ram Type: SRAM

Interface Type: I2C, SPI, USART

Number of ADC channels: 5 Channel

Number of Timers/Counters: 2 Timer

Processor Family: LPC82x

Product: MCUs

Product Type: ARM Microcontrollers - MCUs

Programme Memory Type: Flash

Factory Package Quantity: 2500

Sub Category: Microcontrollers - MCUs

Watchdog Timer: Watchdog Timer, Windowed

Unit weight: 91.015 mg
