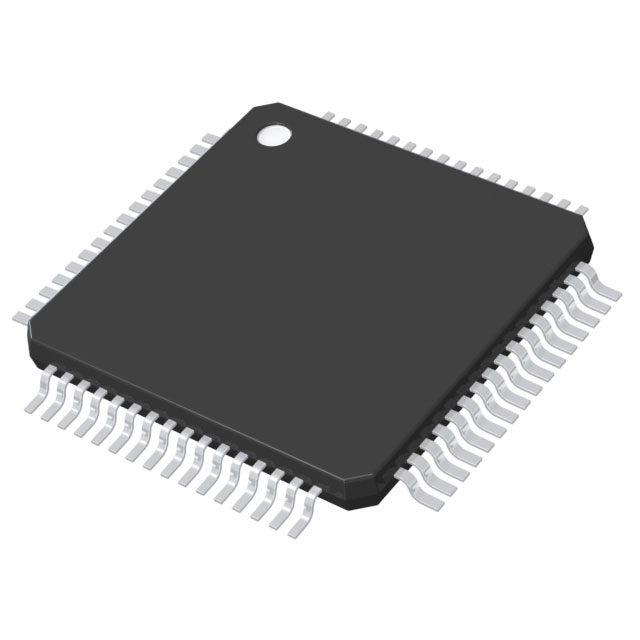

The LPC5506JBD64E MCUhas advanced security, making it ideal for use in industrial, IoT, and general embedded applications.The LPC5506JBD64E Arm Cortex-M33-based microcontroller features a CASPER encryption engine with up to 256KB of on-chip Flash and up to 96KB of on-chip SRAM.The MCU also Includes a PRINCE module for dynamic flash encryption/decryption. The device contains a number of timers, including a code watchdog, CAN FD, five general purpose timers, an SCTimer/PWM, an RTC/alarm timer, a 24-bit Multi-Rate Timer (MRT), and a Window Watchdog Timer (WWDT). Also included are a number of flexible serial communication peripherals, a Programmable Logic Unit (PLU) and a 16-bit 2.0M samples/sec ADC capable of simultaneous conversion, comparators and temperature sensors.

Product Attributes

Product Category: ARM Microcontrollers - MCUs

Family: LPC550x

Mounting Style: SMD/SMT

Core: ARM Cortex M33

Programme memory size: 256 kB

Data bus width: 32 bit

ADC resolution: 16 bit

Maximum clock frequency: 96 MHz

Number of inputs/outputs: 45 I/Os

Data RAM size: 96 kB

Supply voltage - min: 1.8 V

Supply voltage - max: 3.6 V

Minimum operating temperature: - 40 C

Maximum operating temperature: + 105 C

Humidity Sensitivity: Yes

Product Type: ARM Microcontrollers - MCUs

Factory Package Quantity: 160

Sub Category: Microcontrollers - MCU
