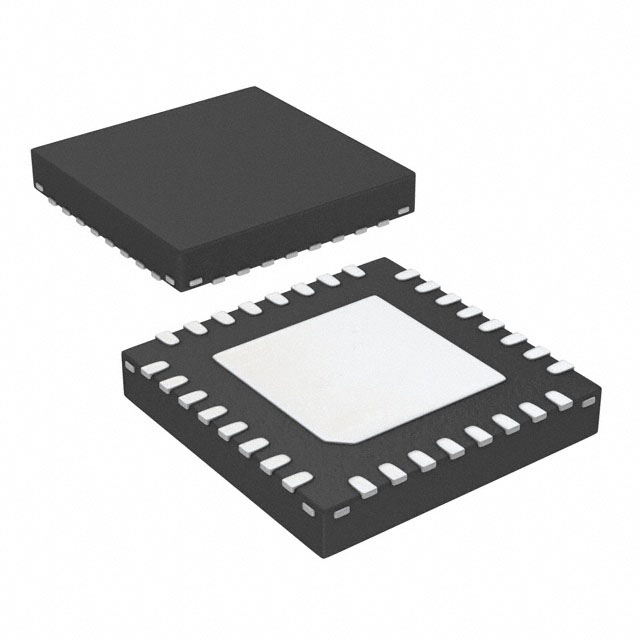

LPC11U24FHN33 is an ARM Cortex-M0 based, low-cost 32-bit MCU family, designed for 8/16-bit microcontroller applications, offering performance, low power, simple instruction set and memory addressing together with reduced code size compared to existing 8/16-bit architectures.

Product Features

Up to 32 kB on-chip flash program memory.

Up to 4 kB on-chip EEPROM data memory; byte erasable and byte programmable.

Up to 10 kB SRAM data memory.

16 kB boot ROM.

Up to 54 General-Purpose I/O (GPIO) pins with configurable pull-up/pull-down resistors, repeater mode, and open-drain mode.

Up to 8 GPIO pins can be selected as edge and level sensitive interrupt sources.

Two GPIO grouped interrupt modules enable an interrupt based on a programmable pattern of input states of a group of GPIO pins.

High-current source output driver (20 mA) on one pin.

High-current sink driver (20 mA) on true open-drain pins.

Unique device serial number for identification.

Single 3.3 V power supply (1.8 V to 3.6 V).

Temperature range -40°C ~ 85°C (TA)

Applications

Consumer peripherals

Handheld scanners

Medical

USB audio devices

Industrial control
