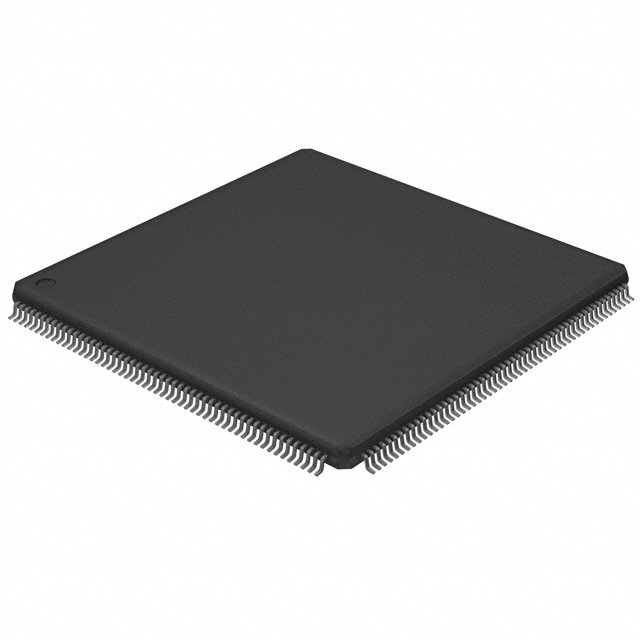

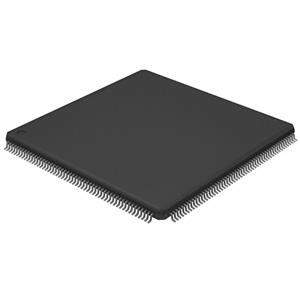

The LPC1857JBD208E is an Arm® Cortex®-M3-based microcontroller for embedded applications.The Arm Cortex-M3 is a next-generation core that offers system-enhancing features such as low power consumption, enhanced debugging features, and provides high-level block integration support.

The LPC1857JBD208E CPU operates at up to 180 MHz.The Arm Cortex-M3 CPU features a 3-stage pipeline and Harvard architecture with separate local instruction and data buses, as well as a third bus for system peripherals.The Arm Cortex-M3 CPU also includes an internal prefetch unit to support branch speculation.

Specification

Core processor: ARM® Cortex®-M3

Core specification: 32-bit single core

Speed: 180MHz

Connectivity: CANbus, EBI/EMI, Ethernet, I²C, IrDA, Microwire, QEI, SD, PI, SI, SP, ART/USART, USB, SB OTG

Peripherals: Undervoltage Detect/Reset, DMA, I²S, Motor Control PWM, POR, PWM, WDT

Number of I/O: 142

Program memory capacity: 1MB (1M x 8)

Programme memory type: Flash

EEPROM size : 16K x 8

RAM size : 136K x 8

Voltage - Supply (Vcc/Vdd): 2.2V ~ 3.6V

Data Converter: A/D 8x10b; D/A 1x10b

Oscillator Type: Internal

Operating Temperature: -40°C ~ 105°C (TA)

Mounting Type: Surface Mount

Package/Housing: 208-LQFP

Supplier Device Package: 208-LQFP (28x28)

Features

Processor Core

Arm Cortex-M3 processor with CPU frequency up to 180 MHz

Arm Cortex-M3 built-in memory protection unit (MPU) supporting 8 sectors

Arm Cortex-M3 built-in nestable vector interrupt controller (NVIC)

Non-maskable interrupt (NMI) inputs

JTAG and serial debug (SWD), serial trace, 8 breakpoints, and 4 watchpoints

Enhanced Trace Module (ETM) and Enhanced Trace Buffer (ETB) support

System beat timer

On-chip memory

Up to 1 MB of on-chip dual-block flash memory with flash accelerator

16 kB on-chip EEPROM data memory

136 kB SRAM for code and data

Multiple SRAM modules with independent bus access support

64 kB ROM containing boot code and on-chip software drivers

64-bit general-purpose one-time programmable (OTP) memory
