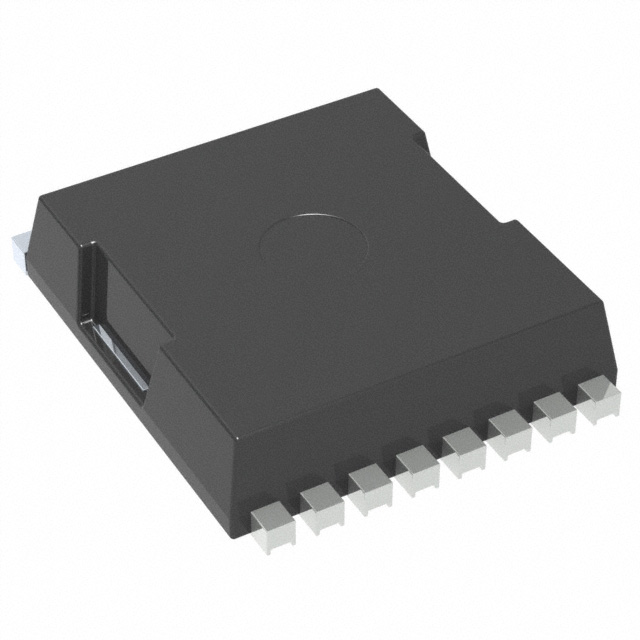

The NVBLS1D1N08H MOSFET features low maximum on-resistance (RDS(ON)), ultra-low gate charge (Qg), and low (Qg) x RDS(ON), the key quality factor (FOM) for MOSFETs used in power conversion applications. Featuring optimised switching performance based on T6 technology, Qg and Qoss are reduced by 35% to 40% compared to the Trench6 family. ON Semiconductor Trench8 MOSFETs are available in a variety of package types for design flexibility.

Product Characteristics

FET Type: N-Channel

Technology: MOSFET (Metal Oxide) MOSFET (Metal Oxide)

Drain-Source Voltage (Vdss): 80 V

Current at 25°C - Continuous Drain (Id): 41A (Ta), 351A (Tc)

Drive voltage (max. Rds on, min. Rds on): 10 V 10 V

On-resistance at different Id, Vgs (max): 1.05 mOhm @ 0.5 Vgs: 1.05 mOhm @ 50A, 10V

Vgs(th) at different Id (max): 4V @ 650µA

Gate Charge (Qg) at Vgs (max): 166 nC @ 10 V 166 nC @ 10 V

Vgs (max): ±20V ±20V

Input capacitance (Ciss) at different Vds (max): 11200 pF @ 40 V

Power Dissipation (Max): 4.2W (Ta 4.2W (Ta), 311W (Tc))

Operating Temperature: -55°C ~ 175°C (TJ)

Grade Automotive Grade

Certification: AEC-Q101 AEC-Q101

Mounting Type Surface Mount

Supplier Equipment Package: 8-HPSOF

Package/Housing: 8-PowerSFN

Applications

● Power tools, battery operated hoovers

● Drones/UAVs, material handling

● BMS/ storage, home automation
