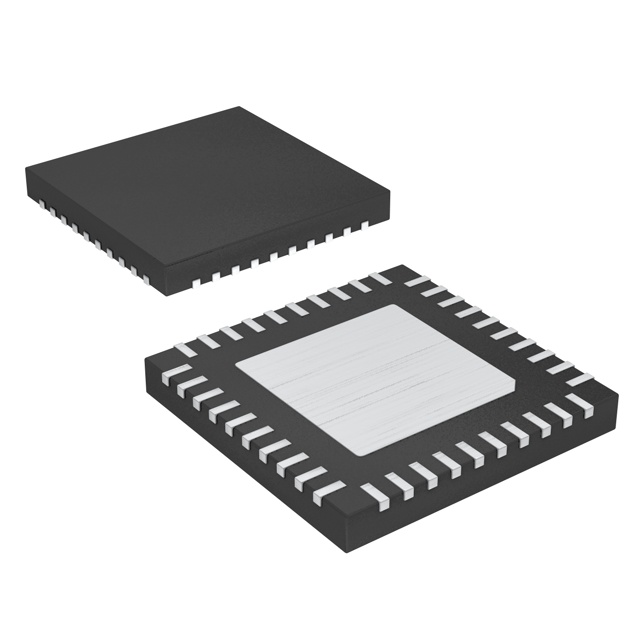

The MAX20069CGTL/VY is a highly integrated TFT power supply and LED backlight driver IC for automotive TFT-LCD applications.The IC integrates a boost/buck converter, a boost converter, two gate drive supplies, and a boost/SEPIC converter for powering the backlight of a four-string LED display.

Features

4-output TFT-LCD bias power supply

Input voltage range of 2.8V to 5.5V for the TFT-LCD section

Integrated 440kHz or 2.2MHz boost and boost/buck converters

3mA, positive/negative gate drive regulator with adjustable output voltage

Flexible resistor programming sequencing via SEQ pin

Undervoltage protection on all outputs

Low quiescent current standby mode

4-channel LED backlighting driver

Up to 150mA output current per channel

4.5V to 42V input voltage range

Integrated Boost/SEPIC controller (440kHz or 2.2MHz)

10,000:1 @ 200Hz dimming ratio

Adaptive voltage optimisation to effectively reduce LED current drive power consumption

String open, LED short circuit, short to ground diagnostics

Low EMI

LED string phase shift dimming

LED driver and TFT spread spectrum

Selectable switching frequency

I2C interface for control and diagnostics

Fault indication via FLTB pin and I2C

Overload and thermal protection

-40°C to +105°C ambient temperature range

40-pin (6mm x 6mm) TQFN package with bare pads

Applications

Automotive centre displays

Automotive Instrument Clusters

Automotive Head-Up Displays

Automotive navigation systems
