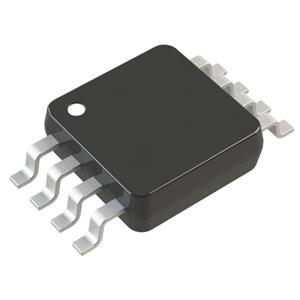

ADA4523-1BRMZ is a high voltage, low noise, zero drift op amp that offers precision dc performance over a wide supply range of 4.5 V to 36 V.

Feature

Supply voltage range: 4.5 V to 36 V

Offset voltage: ±4 µV maximum at 5 V

Offset voltage drift: 0.01 µV/°C maximum at 5 V

Input noise

Voltage: 88 nV p-p from 0.1 Hz to 10 Hz typical

Spectral density voltage: 4.2 nV/√Hz typical at 1 kHz

Rail-to-rail output

Unity-gain stable

GBP: 5 MHz typical

Slew rate: 1.8 V/µs typical falling

PSRR: 168 dB typical at VS = 4.5 V to 36 V

Open-loop voltage gain: 160 dB typical at VOUT = −14.75 V to +14.75 V, RL = 10 kΩ, VS = 30 V

CMRR: 160 dB typical at VCM = −15.1 V to +13.5 V,VS= 30V

Integrated EMI filters

Shutdown mode

Ground sense

Available in 8-lead SOIC, 8-lead MSOP, and 8-lead LFCSP

Applications

High resolution data acquisition

Reference buffering

Test and measurement

Electronic scales

Thermocouple amplifiers

Strain gages

Low-side current sense
