Trade Name:IM111X6Q1B
Data Manual:IM111X6Q1B.pdf
Brand:INFINEON
Particular Year:23+
Package:39-PowerVQFN
Delivery Date:New and Original
Stock: 1000pcs

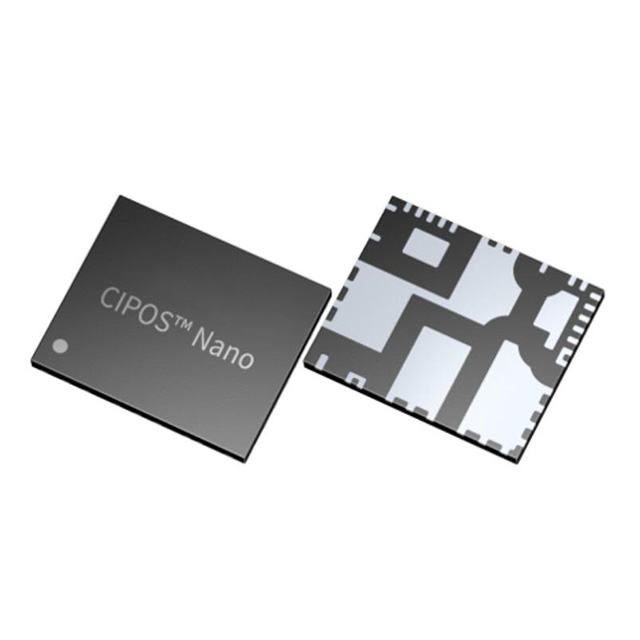

IM111X6Q1B is an H-bridge integrated power module (IPM) designed for advanced appliance motor drive applications. This advanced low profile IPM offers a combination of Infineon’s low RDS(ON) CoolMOS ™ technology and the industry benchmark high voltage, rugged driver in a small 12x10mm QFN package.
Summary of Features
Integrated gate drivers and bootstrap functionality
Overcurrent protection & fault reporting
Low 0.28Ω RDS(on), 600V CoolMOS™
Under-voltage lockout for both channels
Shoot through protection
Matched propagation delay for all channels
Optimized dv/dt for loss and EMI trade offs
Advanced input filter
3.3V input logic compatible
Motor power range 80-200W
1500VRMS min isolation
Potential Applications
Linear refrigerator compressors
High efficiency single-phase motor drives
DC-AC inverters
