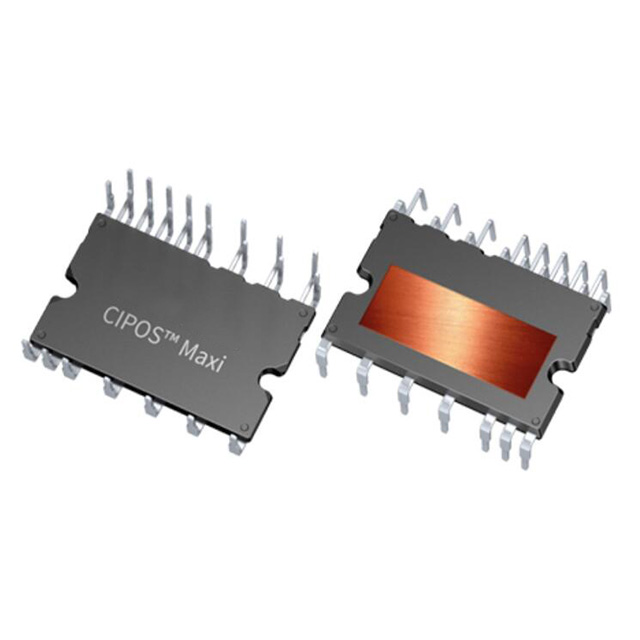

IM818SCC is CIPOS™ Maxi 1200V, 5A three-phase IGBT based intelligent power module with open emitter in DIP 36x23D package providing fully-featured compact inverter solution with excellent thermal conduction for motor drive applications including industrial drives, fans and pumps, HVAC, active filters, and etc.

Product Features

Fully isolated Dual In-Line molded module

1200V TRENCHSTOP™ IGBT4

Rugged 1200V SOI gate driver technology with stability against transient and negative voltage

Allowable negative VS potential up to -11 V for signal transmission at VBS = 15 V

Integrated bootstrap functionality

Over current shutdown

Built-in NTC thermistor for temperature monitor

Under-voltage lockout at all channels

Low side emitter pins accessible for phase current monitoring (open emitter)

Anti cross-conduction

All of 6 switches turn off during protection

Programmable fault clear timing and enable input

Potential applications

Fan drives and active filter for HVAC, pumps, and low power motor drives (GPI, Servo Drives)
