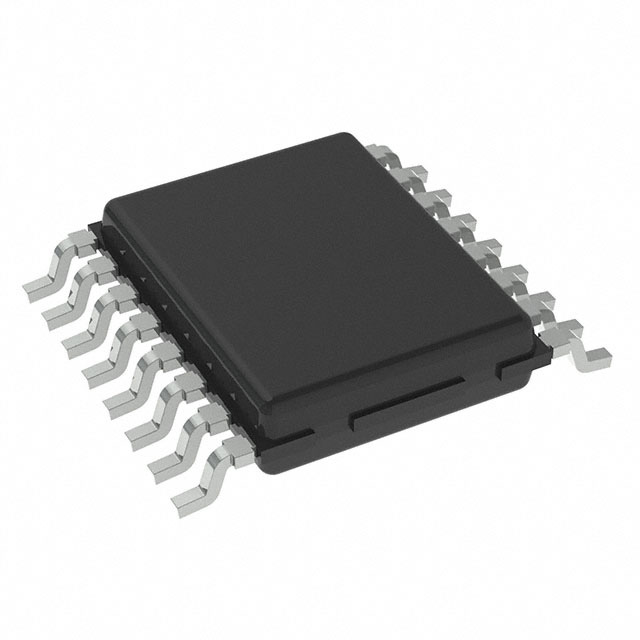

TLE5009A16E2200XUMA1 is designed for angular position sensing in safety critical automotive and non- automotive applications. The high accuracy combined with short propagation delay make especially the GMR sensor variants suitable for systems with high speeds and high accuracy demands such as brush-less DC (BLDC) motors for actuators and electric power steering systems (EPS).

Product Features

Single and dual die sensor with AMR or GMR technology

Separate supply pins for top and bottom sensor

Low current consumption and quick start up

180°(AMR) and 360°(GMR) contactless angle measurement

Output amplitude optimized for circuits with 3.3 V or 5 V supply voltage

Immune to airgap variations due to MR based sensing principle

Automotive qualified Q100, Grade 1: -40°C to 125°C (ambient temperature)

Pre-amplified output signals for differential or single-ended applications

Diverse redundance combination of GMR sensor and AMR sensor in one package possible

High accuracy typically 0.1° overall angle error for AMR sensor

Potential applications

BLDC motors

Pedals and rotary switches

Steering angle sensing

Valve or flap position sensing
