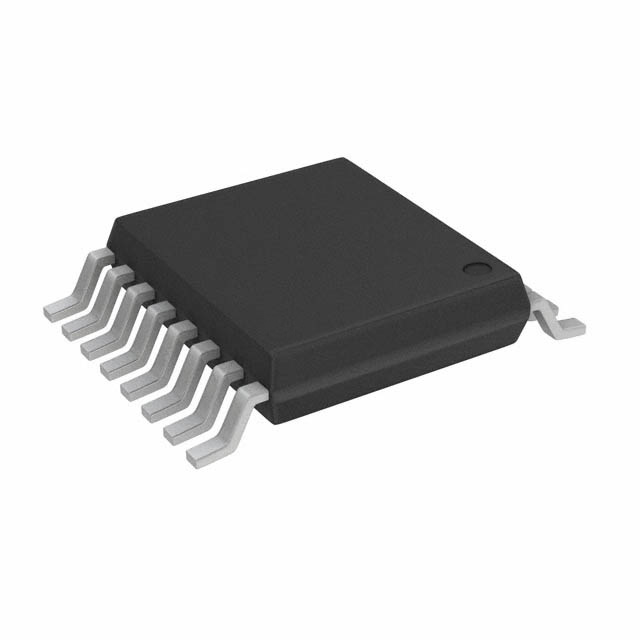

TLE5012BDE9200XUMA1  is a 360° angle sensor that detects the orientation of a magnetic field. This is achieved by measuring sine and cosine angle components with monolithic integrated Giant Magneto Resistance (iGMR) elements.

Features

Giant Magneto Resistance (GMR)-based principle

Fully redundant design with two sensor ICs in one package

Integrated magnetic field sensing for angle measurement

360° angle measurement with revolution counter and angle speed measurement

Two separate highly accurate single bit SD-ADC

15 bit representation of absolute angle value on the output (resolution of 0.01°)

16 bit representation of sine / cosine values on the interface

Max. 1.0° angle error over lifetime and temperature-range with activated auto-calibration

Bi-directional SSC Interface up to 8 Mbit/s

Supports Safety Integrity Level (SIL) with diagnostic functions and status information

Interfaces: SSC, PWM, Incremental Interface (IIF), Hall Switch Mode (HSM), Short PWM Code (SPC, based onSENT protocol defined in SAE J2716)

Output pins can be configured (programmed or pre-configured) as push-pull or open-drain

Bus mode operation of multiple sensors on one line is possible with SSC or SPC interface

0.25 µm CMOS technology

Automotive qualified: -40°C to 150°C (junction temperature)

ESD > 4 kV (HBM)

RoHS compliant (Pb-free package)

Halogen-free

Applications

Electrical commutated motor (e.g. used in Electric Power Steering (EPS))

Steering angle measurements

General angular sensing
