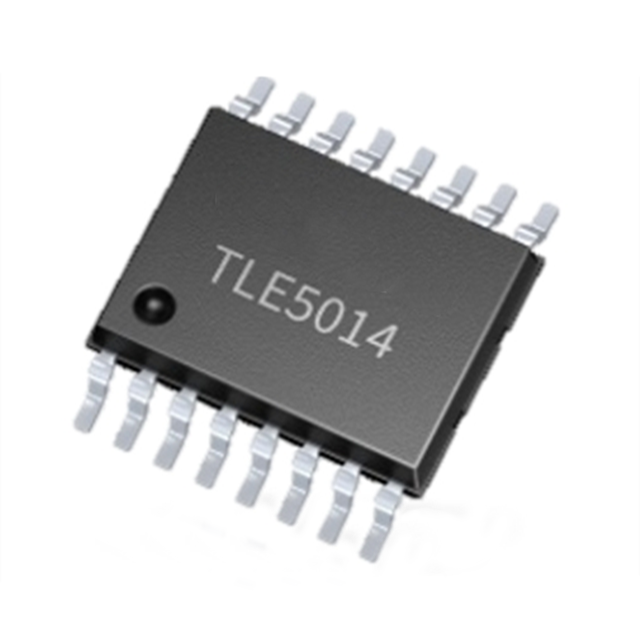

TLE5014S16XUMA1 is angle sensor with analog outputs.The sensors provide analog sine and cosine output voltages that describe the magnetic angle in a range of 0 to 180° (AMR sensor),and 0 to 360° (GMR sensor), respectively.

Features

Giant Magneto Resistance (GMR)-based principle

Integrated magnetic field sensing for angle measurement

360° angle measurement

High voltage and reverse polarity capability

EEPROM for storage of configuration (e.g. zero angle) and customerspecific ID

12 bit representation of absolute angle value on the output

Max. 1° angle error over lifetime and temperature range

Developed according to ISO26262 with process complying to ASIL-D

Internal safety mechanisms with a SPFM > 97%

Interfaces: PWM, SPC, SENT (based on SAE J2716-2010)

32 point look-up table to correct for systematic angle errors (e.g. magnetic circuit)

112 bit customer ID (programmable)

Automotive qualified Q100, Grade 1: -40°C to 125°C (ambient temperature)

ESD: 4kV (HBM) on VDD and output pin

RoHS compliant and halogen free package

Applications

TLE5014C16XUMA1 GMR-based angle sensor is designed for angular position sensing in automotive applicationswith focus on steering angle sensor.
