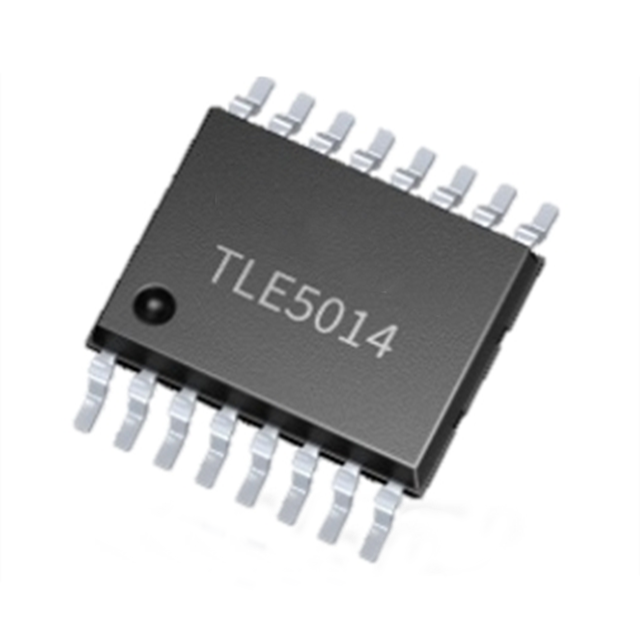

TLE5014S16D is angle sensor with analog outputs.The sensors provide analog sine and cosine output voltages that describe the magnetic angle in a range of 0 to 180° (AMR sensor),and 0 to 360° (GMR sensor), respectively.

Features

Giant Magneto Resistance (GMR)-based principle

Two identical dies in one package (providing channel 1 and channel 2 output)

Fully redundant 2-channel solution for highest functional safety requirements

High voltage and reverse polarity capability

EEPROM for storage of configuration (e.g. zero angle) and customer specific ID

12 bit representation of absolute angle value on the output

Max. 1° angle error over lifetime and temperature range

Developed according to ISO26262 with process complying to ASIL-D

Internal safety mechanisms with diagnostic coverage >97% for each channel

Interfaces: PWM, SPC, SENT (based on SAE J2716-2010)

32 point look-up table to correct for systematic angle errors (e.g. magnetic circuit)

112 bit customer ID (programmable)

Automotive qualified Q100, Grade 1: -40°C to 125°C (ambient temperature)

Applications

TLE5014S16D GMR-based angle sensor is designed for angular position sensing in automotive applications.Fully redundancy of two chips in one package supporting highest functional safety requirements.
