The TLE4983CHTE6547HAMA1 is an active Hall sensor ideal for automotive camshaft applications. Its basic function is to map the tooth slots of a gear or magnetic wheel to a unique electronic output state. Due to the innovative chopper Hall technology used in this sensor, the magnetic switching points offer high accuracy and excellent stability. An electrical trim option for post-manufacturing fine-tuning sets the sensor's switching point. This ensures true energisation capability even if, for example, the magnetic configuration differs or deviates during production. The programmability of the sensor also includes the option to adjust the temperature coefficient according to the needs of the application. In addition, a self-calibration module is employed to achieve optimum accuracy during normal operation. Self-calibration adjusts the offset and is well suited for symmetrical and asymmetrical target wheels.The TLE4983CHTE6547HAMA1 is available in a three-pin package for supply voltage and open-drain output. The package has two integrated capacitors for enhanced EMC microdisconnect performance.

Function Overview

True Power-On function (TPO)

Programmable switching points

Programmable back-biased magnet temperature coefficient

Single Chip Solution

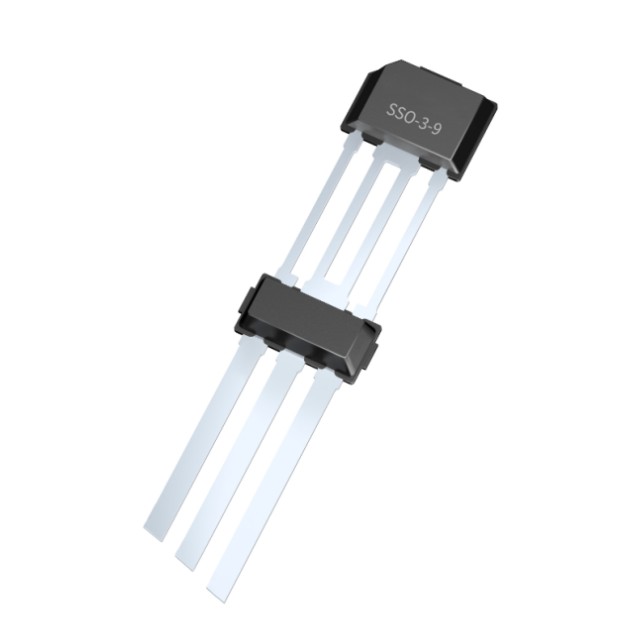

PG-SSO-3-9 (1)

Torsionally Independent Mounting (TIM) for greater manufacturing tolerances

Advanced performance through dynamic self-calibration principle

High accuracy and stability of magnetic switching points

High resistance to mechanical stress

Digital output signal (voltage interface)

Short circuit protection

Enhanced ESD performance

Modular package with two integrated capacitors for minor power cut-off and enhanced EMC performance, 47nF between VS and GND, 4.7nF between Vq and GND, 40°C to 150°C

Automotive compliant
