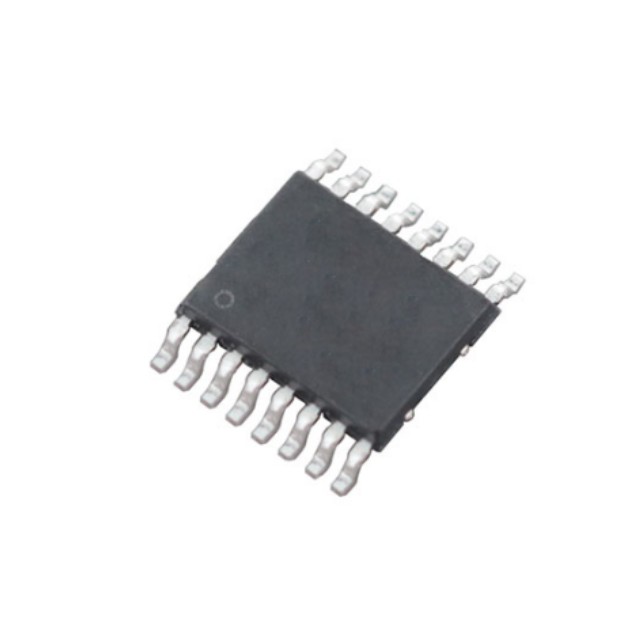

TLE5109A16DE1210XUMA1 angle sensors are designed for angular position sensing in safety-critical automotive and non-automotive applications. Their high accuracy and short propagation delays, especially the GMR sensor variant, are suitable for high-speed, high-accuracy demanding systems such as brushless DC (BLDC) motors for actuators and electric power steering (EPS) systems.The AMR sensors, with a typical accuracy of 0.1°, are suitable for high-speed, high-accuracy demanding systems such as pedals, levers, or BLDC motors with an even number of pole pairs. motors with even pole pairs. They also have fast start-up times and low total power consumption, so they can be used for low-power turn counting. Extremely low power consumption can be achieved by power cycling, and the advantage of fast start-up reduces average power consumption.

Product properties

For measuring: Angle

Technology: Magnetoresistive

Angle of Rotation - Electrical, Mechanical: 0° ~ 180

Output: Analogue voltage

Output signals: Cosine, Sine

Actuator type: external magnet, not included

Linearity: ±0.1°

Voltage - Supply: 3.3V

Mounting Type: Surface Mount

Termination Style: Gull Wing

Package/Shell: 16-TSSOP (0.154", 3.90mm wide)

Supplier Device Package: PG-TDSO-16-2

Potential applications include:

- Brushless DC motors

- Pedal and rotary switches

- Steering angle sensing

- Valve or flap position sensing
