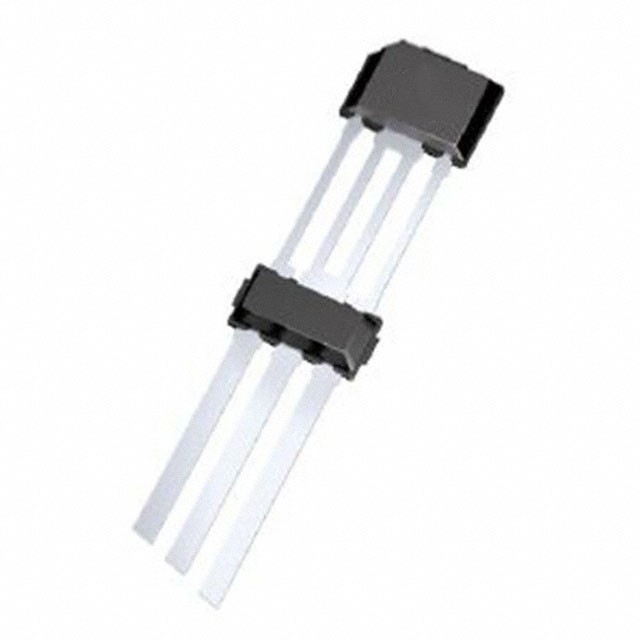

The TLE4929CXVAM18NAHAMA1 is an active Hall sensor that is ideally suited for crankshaft applications and similar industrial applications such as speedometers or any speed sensor with high accuracy and low jitter capability.

Product Properties

Technology: Hall effect

Sensing Range: ±120mT

Voltage - supply: 4V ~ 16V

Current - Supply (maximum): 13.4mA

Current - Output (Max): 15mA

Output Type: Open Drain

Features: Programmable, Temperature Compensated

Operating Temperature: -40°C ~ 175°C (TJ)

Mounting Type: Through Hole

Supplier Device Package: PG-SSO-3-52

Package/Housing: 3-SIP Module

Features

Measures tooth/polar wheel speed and position

Switching point in the middle of the wheel tooth for backward compatibility

Differential sensing principle for high stability against magnetic spuriousness

Digital output signals with programmable output protocol, including Diagnostic interface

Direction detection and stop-start algorithms

High accuracy and low jitter

High sensitivity to support large air gaps

End-programmable to adapt to engine parameters

Can be used as a differential camshaft sensor

Wide automotive operating temperature range
