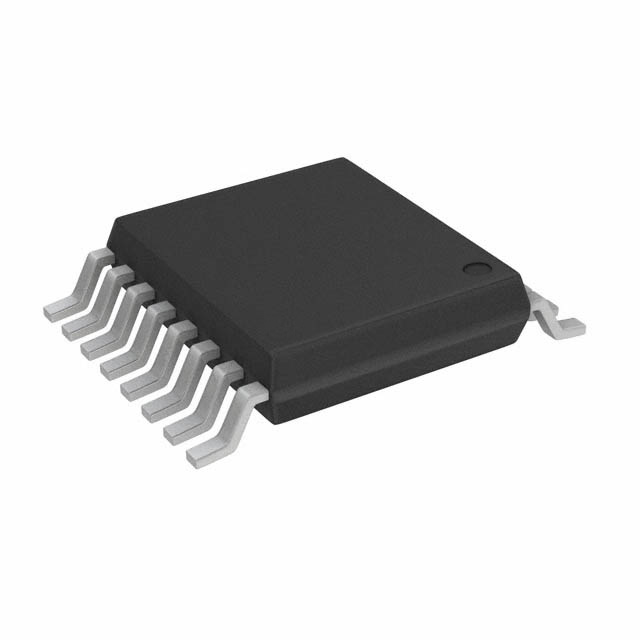

Infineon's TLE5009A16DE1210XUMA1 angle sensor family is designed for angular position sensing automotive applications. The device's high accuracy, wide 360° measuring range and short propagation delays make it suitable for high-speed, high-precision systems such as brushless DC (BLDC) motors for actuators and electric power steering (EPS) systems. At the same time, its fast power-up time and low total power consumption enable it to be used for low-power turn counting. Extremely low power consumption is achieved by power cycling, and the fast power-up advantage reduces average power consumption.

The magnetic sensor uses 5.0V dual-mode GMR technology without TCO (temperature compensated offset).

Functional Overview

Single and dual wafer sensors with AMR or GMR technology

Separate power pins for top and bottom sensors

Low current consumption and fast start-up

180° (AMR) and 360° (GMR) non-contact angle measurement

Output amplitude optimised for circuits with 3.3 V or 5 V supply voltage

Based on MR sensing principle, unaffected by air gap variations

Meets Q100 automotive standard, Class 1: -40°C to 125°C (ambient temperature)

Pre-amplified output signal for differential or single-ended applications

Multiple redundant combinations of GMR and AMR sensors in one package

AMR sensors are highly accurate, with a total angular error of typically 0.1°

Potential Applications

Brushless DC motors

Pedal and rotary switches

Steering angle sensing

Valves
