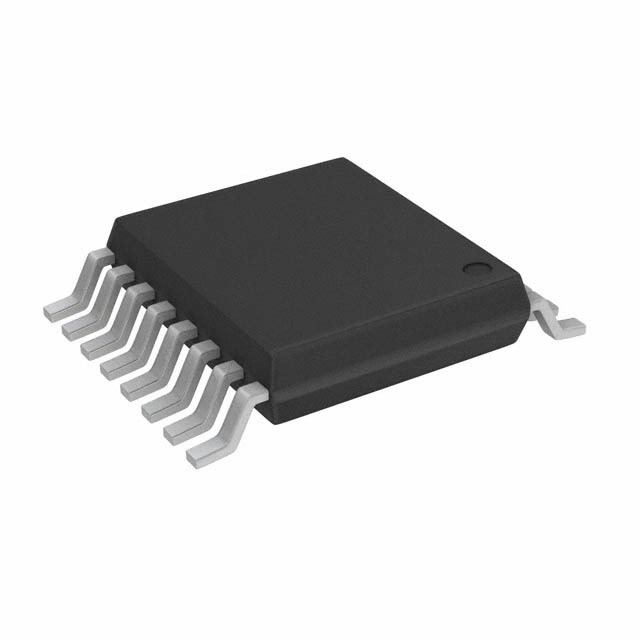

The TLE5009A16DE2200XUMA1 Angle Sensor is a dual-chip sensor with analogue output that detects the direction of a magnetic field. The sensor monitors magnetic fields by measuring sinusoidal and cosinusoidal angular components using a giant magnetoresistive (iGMR) element and provides analogue sinusoidal and cosinusoidal output voltages describing the magnetic angle range of 0° to 360°. The GMR bridge signal is independent of the magnetic field strength, and the output voltages are designed to take advantage of the dynamic range of the analogue-to-digital converter (which uses the same source as the voltage reference as the sensor). infineon TLE5009A16DE2200XUMA1 Angle Sensor The dual-chip design is ideal for security applications that require redundancy, as the two chips are powered independently by separate power and ground pins.

Product Features

Single and dual mode sensors with GMR technology

Separate power pins for top and bottom sensors

Low current consumption and fast start-up

360° (GMR) non-contact angle measurement

Output amplitude optimised for circuits with 3.3 V or 5 V supply voltage

Based on MR sensing principle, unaffected by air gap variations

Meets Q100 automotive standard, Class 1: -40°C to 125°C (ambient temperature)

Pre-amplified output signal for differential or single-ended applications

Multiple redundant combinations of GMR and AMR sensors in one package

High AMR sensor accuracy, typically 0.1° total angular error

Green product (RoHS compliant)

Applications

Angular position detection for automotive applications

Brushless DC (BLDC) motors

Electric Power Steering (EPS)
