The LTC6362HDD is a low-power, low-noise differential computing ampere with rail-to-rail input and output swing optimized drive for a low-power SAR adc. Only 1mA of supply current is drawn during active operation, and with an off mode, current consumption is reduced to 70μA. The amplifier can be configured to convert a single input signal to a differential output signal and is configured to operate in either inversion or non-inversion.

Product attribute

Amplifier type: Differential

Circuit number: 1

Output type: Differential, full swing

Pressure swing rate: 45V/µs

Gain bandwidth product: 180 MHz

-3db Bandwidth: 34 MHz

Current-input bias: 75 nA

Voltage-input compensation: 75 µV

Current - Power supply: 1mA

Voltage-span (min) : 2.8V

Voltage - span (Max.) : 5.25V

Operating temperature: -40°C ~ 125°C

Mounting type: Surface mount type

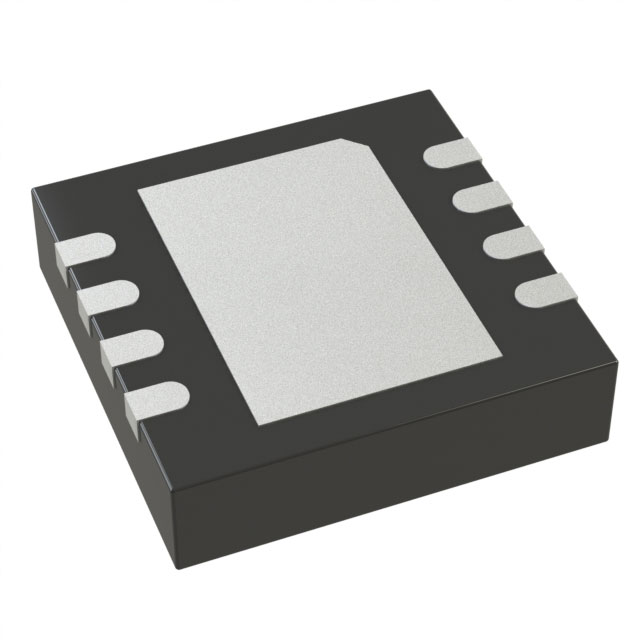

Package/housing: 8-WFDFN bare pad

Supplier Package: 8-DFN (3x3)

Apply

● 16-bit and 18-bit SAR ADC drivers

● Single-end slip conversion

● Low power pipeline ADC driver

● Differential line driver

● Battery powered meter
