CY7C65219-40LQXI is a USB Billboard controller that is designed for managing USB dock and monitor solutions. The DMC provides USB full-speed capability to support USB Billboard device class v1.21. It supports signed and unsigned firmware download over USB to programmable dock components (such as USB PD Controller and Hub controller) connected to the DMC.

Features

Dock Management Controller

USB-IF Certified USB 2.0 FS Silicon, TID#1534

USB Billboard device class v1.21 support

Firmware update support and status reporting for DMC and all programmable dock components

32-bit MCU Subsystem

48-MHz Arm Cortex-M0 CPU

128-KB Flash

8-KB SRAM

Integrated Digital Blocks

Hardware Crypto block enables Authentication

Full-Speed USB Device Controller supporting Billboard Device Class

Integrated timers and counters

Four run-time reconfigurable serial communication blocks (SCBs) with reconfigurable I2C, SPI, or UART functionality

Clocks and Oscillators

Integrated oscillator eliminating the need for external clock

2.7 V to 5.5 V operation

Independent supply voltage pin for GPIO that allows 1.71 V to 5.5 V signaling on the I/Os

Reset: 30 µA, Deep Sleep: 30 µA, Sleep: 3.5 mA

System-Level ESD Protection

On DPLUS and DMINUS pins

± 8-kV Contact Discharge and ±15-kV Air Gap Discharge based on IEC61000-4-2 level 4C

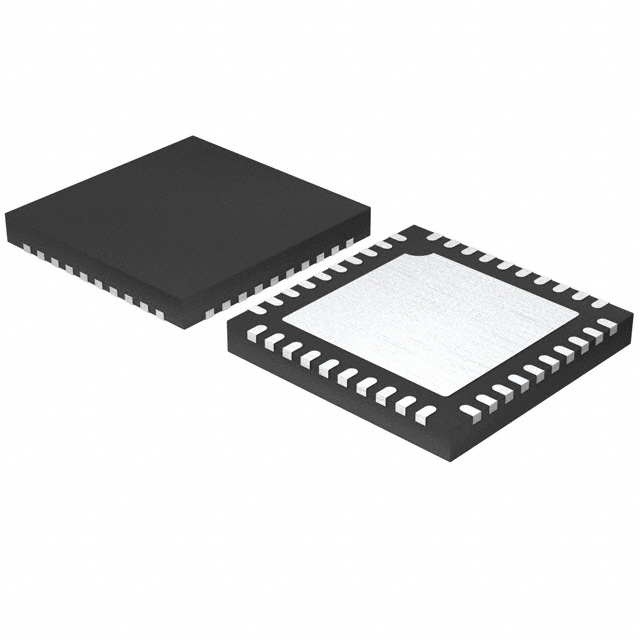

40-pin QFN for Docks/monitors

Supports industrial temperature range (–40 °C to +85 °C)
