The ADA4805-2ACPZ high-speed amplifiers are high-speed, voltage-feedback, rail-to-rail output amplifiers with exceptionally low quiescent currents of up to 500μA, making them ideal for low-power, high-resolution data conversion systems. Despite their low power, the amplifiers offer excellent overall performance. They feature a high bandwidth of 105MHz at +1 gain, a high voltage slew rate of 160 V/μs, and a low input offset voltage of 125μV maximum.

Product Attributes

Amplifier Type: Voltage Feedback

Number of circuits: 2

Output Type: Full Swing

Voltage swing rate: 250 V/µs

-3db Bandwidth: 120 MHz

Current - Input Bias: 550 nA

Voltage - Input Compensation: 13 µV

Current - Supply: 570 µA (x2 channels)

Current - Output/Channel: 73 mA

Voltage - Span (min): 2.7 V

Voltage - Span (Max): 10 V

Operating Temperature: -40°C ~ 125°C

Mounting Type: Surface Mount

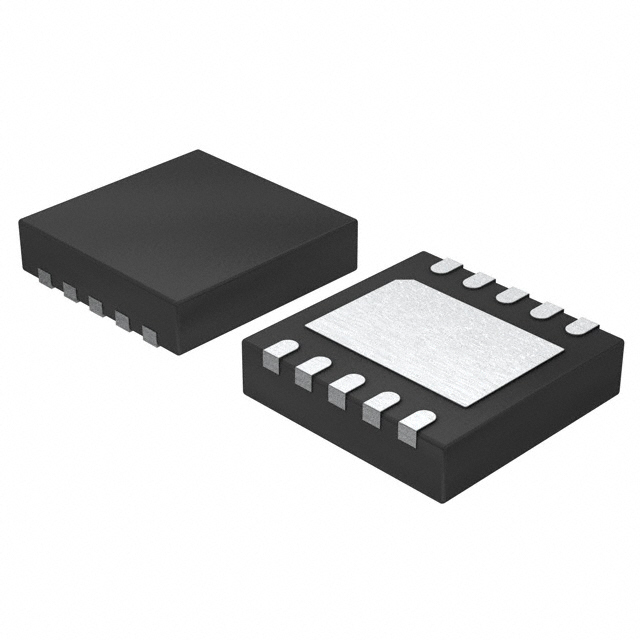

Package/Shell: 10-VFDFN Exposed Pad, CSP

Supplier Device Package: 10-LFCSP-WD (3x3)

APPLICATIONS

● High-resolution, high-precision analogue-to-digital converters

● ADC drivers

● Battery-powered instruments

● Micropower active filters

● Portable point-of-sale terminals

● Active radio frequency identification (RFID) readers

● Photomultipliers

● ADC reference buffers
