The LTC6227HDD rail-to-rail output operational amplifiers (op amps) are ultra-fast, low-noise, unit gain stabilised single/dual operational amplifiers with a gain-bandwidth product of 420MHz and a slew rate of 180V/μs. The low input reference voltage noise is only 1nV/√Hz, and distortion of the 4VP-P signal at 1MHz is less than -90dBc. and are therefore ideally suited for applications requiring high dynamic range and processing ultra-fast signals, such as driving analogue-to-digital converters. The devices feature low misalignment, low misalignment drift, high gain (139dB), and high CMRR (114dB), making them ideal for high dynamic range applications.

Product Attributes

Amplifier Type: General Purpose

Number of circuits: 2

Output Type: Full Swing

Slew rate: 180V/µs

Gain Bandwidth Product: 420 MHz

-3db Bandwidth: 330 MHz

Current - Input Bias: 8.4 µA

Voltage - Input Compensation: 20 µV

Current - Supply: 5.5 mA (x2 channels)

Current - Output/Channel: 64 mA

Voltage - Span (min): 2.8 V

Voltage - Span (Max): 11.75 V

Operating Temperature: -40°C ~ 125°C

Mounting Type: Surface Mount

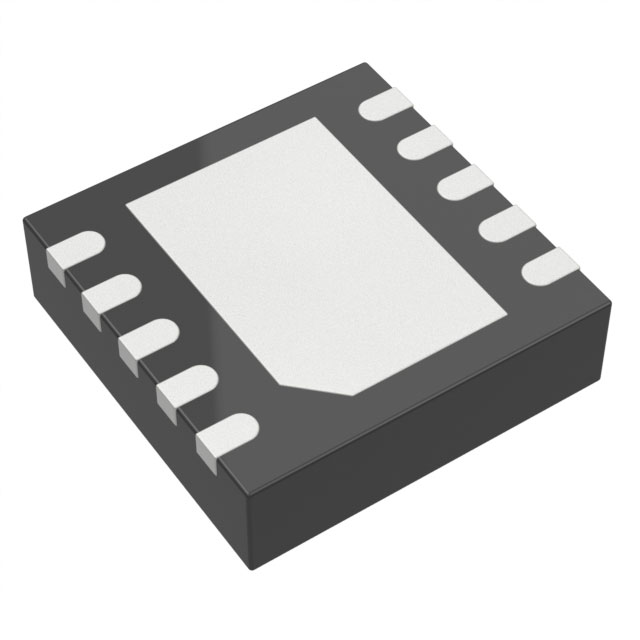

Package/Shell: 10-WFDFN Exposed Pad

Supplier Device Package: 10-DFN (3x3)

Applications

● Optical Electronics: Fast AC Coupled Transimpedance Amplifiers

● Driving high dynamic range analogue-to-digital converters

● Active filters

● Video amplifiers

● Low voltage and low distortion amplification
