The LT3922EUFD is a monolithic, synchronous, step-up DC/DC converter with fixed frequency control and PWM dimming. Featuring fixed frequency, peak current control and PWM dimming, the LED current is programmed by an analogue voltage or by the duty cycle of a pulse on the CTRL pin. Current regulation is maintained at ±2.5% over a wide current regulation range with an external sense resistor. The switching frequency is programmable from 200kHz to 2MHz through an external resistor on the RT pin to 2MHz. The frequency varies from 100% to 125% when the optional spread spectrum frequency modulation is enabled to reduce EMI.

Product Attributes

Type: DC DC Controller

Topology: Boost

Internal Switch: None

Number of Outputs: 1

Voltage - Supply (minimum): 2.8V

Voltage - Supply (Max): 36V

Current - Output/Channel: 2.3A

Frequency: 200kHz ~ 2MHz

Dimming: Analogue, PWM

Applications: Automotive Grade, Lighting

Operating Temperature: -40°C ~ 125°C (TJ)

Mounting Type: Surface Mount

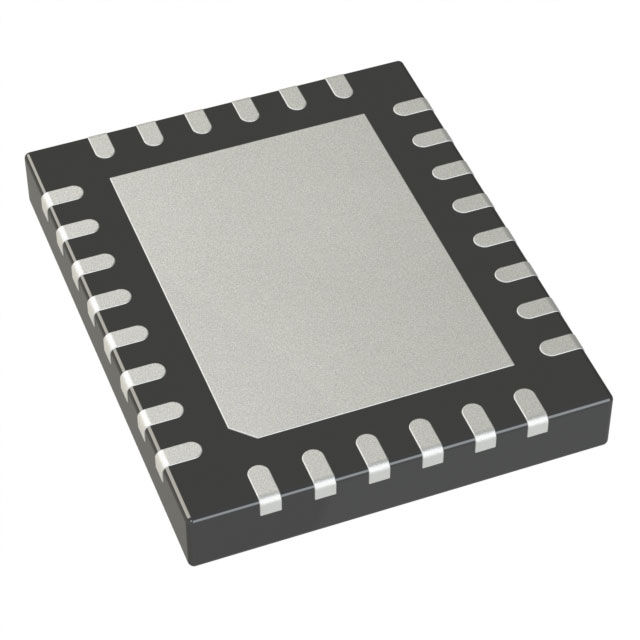

Package/Housing: 28-WFQFN Exposed Pad

Supplier Device Package: 28-QFN (4x5)

Applications

● Automotive and industrial lighting

● Machine vision
