The LT8330ES6 is a current-mode DC/DC converter capable of generating positive or negative output voltages with a single feedback pin. It can be configured as a boost, SEPIC, or inverting converter and consumes as low as 6µA of quiescent current. Low ripple burst mode operation maintains high efficiency at very low output currents while maintaining output ripple stabilisation currents, while keeping output ripple below 15mV in typical applications. The internally compensated current mode architecture provides stable operation over a wide range of input and output voltages.

Product Attributes

Function: Boost, Boost/Buck

Output Configuration: Positive or negative, isolation available

Topology: Boost, SEPIC

Output Type: Adjustable

Number of Outputs: 1

Voltage - Input (Min): 3V

Voltage - Input (Max): 40V

Voltage - Output (Min/Fixed): 1.6V, -0.8V

Voltage - Output (Max): 60V (Switched)

Current - Output: 1A

Frequency - Switching: 2MHz

Synchronous Rectifier: None

Operating Temperature: -40°C ~ 125°C (TJ)

Mounting Type: Surface Mount

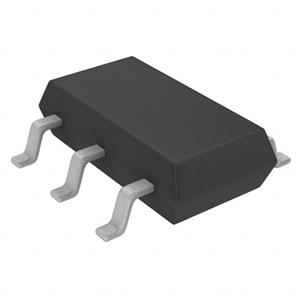

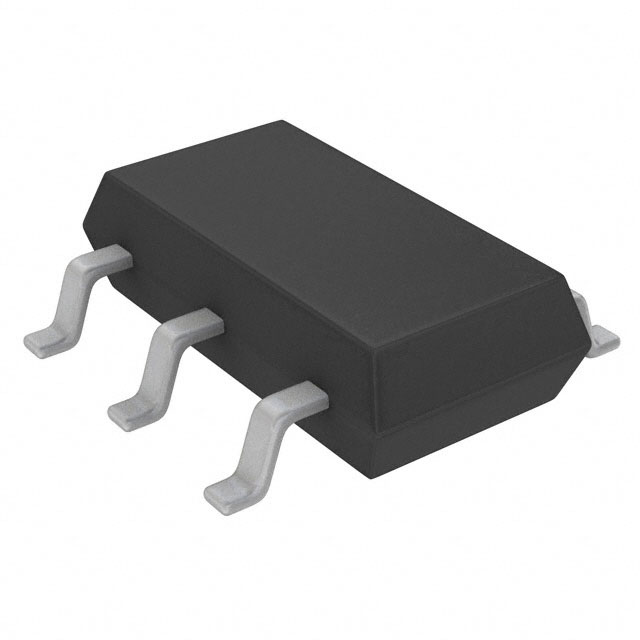

Package/Shell: SOT-23-6 Fine, TSOT-23-6

Supplier Device Package: TSOT-23-6

Applications

● Industrial and automotive

● Telecommunications

● Medical diagnostic equipment

● Portable electronics
