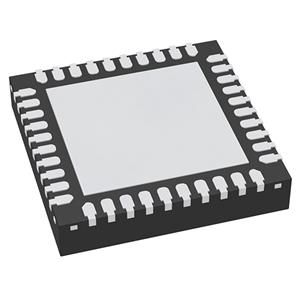

KW45Z41052AFPBR is a low-power, highly secure, single-chip wireless MCU that integrates a high performance Bluetooth Low Energy version 5.3 radio and CAN FD for Automotive and Industrial applications.

Feature

Up to 96 MHz Arm Cortex8-M33 core

Up to 1 MB flash memory

128 KB SRAM

TrustZone-M, IEEE 754 FPU, DSP, MPU, NVIC, SysTick

8 KB Code Cache to improve performance and efficiency

Dedicated CM3 core running at up to 64 MHz

256 kB Flash supporting upgradable software radio

88 KB SRAM optimized for link layer support

Up to 24 simultaneous connections

Programmable Transmit Output Power up to +10 dBm

Data Rates: 125 kbps, 500 kbps, 1 Mbps, and 2 Mbps

Modulation Types: 2 Level FSK, GFSK, MSK, GMSK

Integrated memories in radio containing BluetoothLE Controller Stack and radio drivers

On-chip balun with single ended bidirectional RF port

Low extemal component counts for low cost, small form- factor designs

Memory Protection Unit (MPU)

Register write protection

llegal memory access

Flash area protection

SRAM Error Correction Code (ECC) and SRAM parity error check

Clock Frequency Accuracy Measurement Circuit (CAC) using Signal Frequency Analyzer (SFA) module

Cyclic Redundancy Check (CRC) calculator

Two internal, independent and one external watchdog timer

Clock loss detection

Main oscillator stop detection (Loss of lock detection)

Low voltage 1 high voltage detection

Two 6-channel 32-bit timers (TPM) with PWM capability and DMA support

Two 32- bit low-power timers (LPTMR) or pulse counters with compare features

4-channel 32-bit low-power periodic interrupt timer (LPIT) with DMA support

One 56- bit timestamp timer

32-bit seconds real time counter (RTC) with 32-bit alarm and independent power supply

Signal frequency analyzer (SFA) provides facllties for measurement of clock period/frequency as well as time between triggers

Applications

Automotive:

Secure Car Access

Keyless Entry

Passive Entry/Passive Start (PEPS) Systems

Wireless Battery Management Systems (WBMS)

Industrial/IoT:

Positioning/Localization

Building Control and Monitoring

Process/Factory Automation
