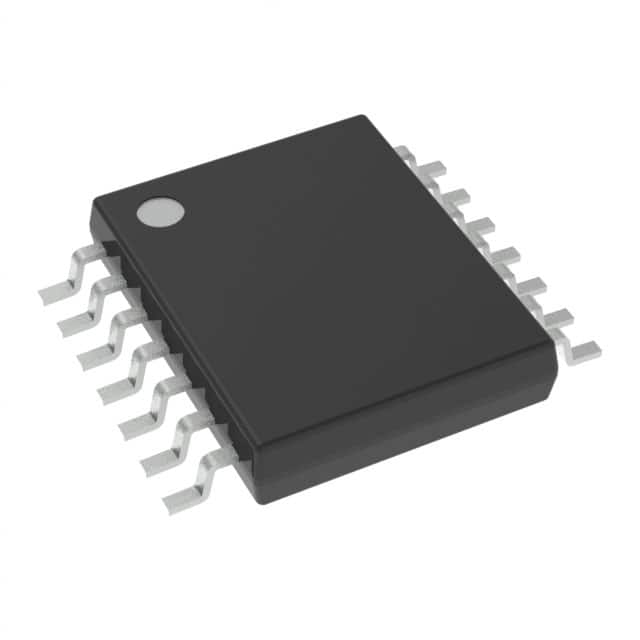

The TLV9154-Q1 (TLV9154QPWRQ1) family is a 16V general purpose automotive op amp family. These devices offer excellent DC accuracy and AC performance, including rail-to-rail output, low offset voltage (±125µV, typical), low temperature drift (±0.3µV/°C, typical) and 4.5MHz bandwidth.

Features

- Compliant with AEC-Q100 standard for automotive applications

- Temperature class 1: -40°C to +125°C, TA

- Device HBM ESD classification class 3A

- Device CDM ESD classification class C6

- Low out-of-sync voltage: ±125µV

- Low detuning voltage drift: ±0.3µV/°C

- Low noise: 10.8nV/√Hz at 1 kHz

- High common mode rejection: 120dB

- Low bias current: ±10pA

- Rail-to-rail inputs and outputs

- Wide bandwidth: 4.5MHz GBW

- High voltage swing rate: 21V/µs

- Low quiescent current: 560µA per amplifier

- Wide supply voltage: ±1.35 V to ±8 V, 2.7 V to 16 V

- Robust EMIRR performance: EMI/RFI filters on input pins

Applications

- Optimised for AEC-Q100 Level 1 applications

- Infotainment systems and instrument clusters

- Passive safety

- Body electronics and lighting

- Hybrid/electric vehicle inverters and motor control

- On-Board Chargers (OBC) and Wireless Chargers

- Powertrain current sensors

- Advanced Driver Assistance Systems (ADAS)

- High-side and low-side current detection
