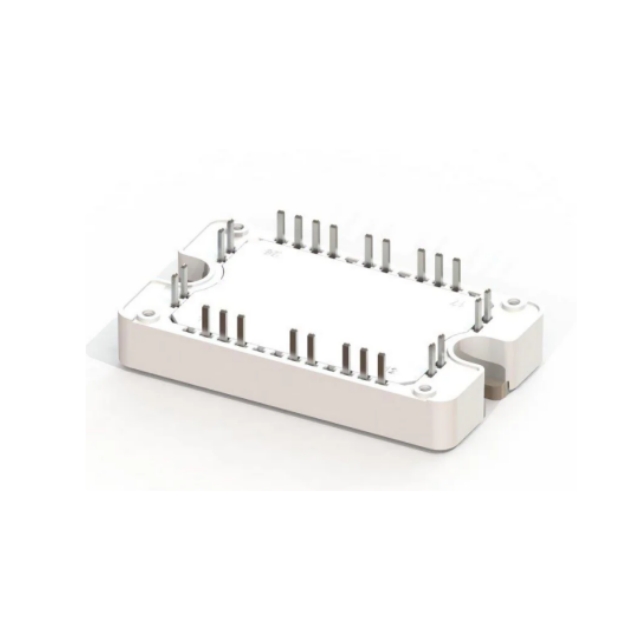

The MSCSM120TLM31C3AG are SiC Schottky diodes (CR1 and CR2) featuring SiC power MOSFETs, low RDS (conduction), high temperature performance, zero reverse recovery and zero forward recovery, temperature independent switching behaviour, VF positive temperature coefficient, Kelvin source, easy to drive, low stray inductance, high level of integration, and aluminium nitride substrate for improved thermal performance. The devices offer excellent performance in high frequency operation, direct mounting to heat sinks (isolated packages), low thermal resistance of the enclosure, and solderable power and signal terminals for easy PCB mounting. Small form factor and RoHS compliant.

Product Attributes

Technology: Silicon Carbide (SiC)

Configuration: 4 N-channels (triple inverters)

Drain-source voltage (Vdss): 1200V (1.2kV)

Current at 25°C - Continuous Drain (Id): 89A (Tc)

On-resistance (max) at different Id, Vgs: 31 milliohms @ 40A, 20V

Vgs(th) at varying Id (max): 2.8V @ 1mA

Gate Charge (Qg) at Vgs (max): 232nC @ 20V

Input capacitance (Ciss) at varying Vds (max): 3020pF @ 1000V

Power - Max: 395W (Tc)

Operating Temperature: -40°C ~ 175°C (TJ)

Mounting Type: Chassis Mount

Package/Housing: Module

Supplier Device Package: SP3F

Applications

● Uninterruptible Power Supplies
