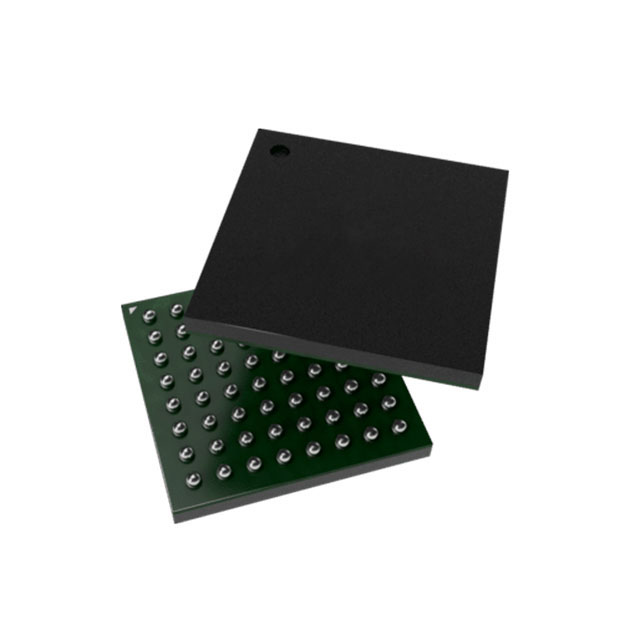

ATSAMR35J17B-I/7JX Ultra-low power microcontrollers combined with a UHF transceiver communication interface

Introduction

ATSAMR35J17B-I/7JX Uses a 32-bit ARM® Cortex® -M0+ processor and offers up to 256KB of Flash and 40KB of SRAM, including an area of battery backed-up SRAM. The UHF transceiver supports LoRa® and FSK modulation. The SAM R35 offers the same microcontroller functions along with the UHF transceiver without the USB interface.

Operational Features

ARM Cortex -M0+ CPU running at up to 48 MHz (2.46CoreMark®/MHz)

Single-Cycle Hardware Multiplier

Micro Trace Buffer (MTB)

Up to 16 External Interrupts

Operating Voltage: 1.8V- 3.6V

Temperature Range: -40°C to +85°C (Industrial)

Up to 168 dB Maximum Link Budget

Robust Front-End: IIp3 = -11 dBm

Excellent Blocking Immunity

Low RX Current of 17 mA (typical)

Fully Integrated Synthesizer with a Resolution of 61 Hz

LoRa Technology, (G)FSK, (G)MSK and OOK Modulation

Preamble Detection

127 dB Dynamic Range RSSI

Automatic RF Sense and CAD with Ultra-Fast Automatic Frequency Control (AFC) Packet Engine up to 256 bytes with Cyclic Redundancy Check (CRC)

32-bit Real Time Counter (RTC) with Clock/Calendar Function

Two Analog Comparators (AC) with Window Compare Function

Peripheral Touch Controller (PTC): 18-channel capacitive touch and proximity sensing
