ATSAMR30G18A-MU is Ultra low-power microcontrollers equipped with an IEEE® 802.15.4-2003/2006/2011 compliant RF interface for the sub-1GHz frequency bands.

The highly configurable peripherals include a touch controller supporting capacitive interfaces with proximity sensing. The sub-GHz RF interface supports BPSK and O-QPSK modulation schemes according to the IEEE standard and offers output power values of more than +8dBm and receiver sensitivities below -108 dBm.

Product Attributes

Type: TxRx + MCU

RF Family/Standard: 802.15.4

Modulation: BPSK, O-QPSK

Frequency: 700MHz, 800MHz, 900MHz

Data Rate (Max): 1Mbps

Power - Output: 11dBm

Sensitivity: -110dBm

Memory Size: 256kB Flash, 40kB SRAM

Serial Interfaces: I²C, SPI

GPIO: 28

Voltage - Supply: 1.8V ~ 3.6V

Current - Receiving: 9.2mA

Current - Transmitting: 26.5mA

Operating Temperature: -40°C ~ 85°C

Mounting Type: Surface Mount

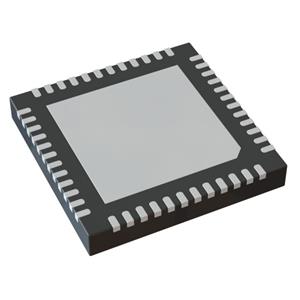

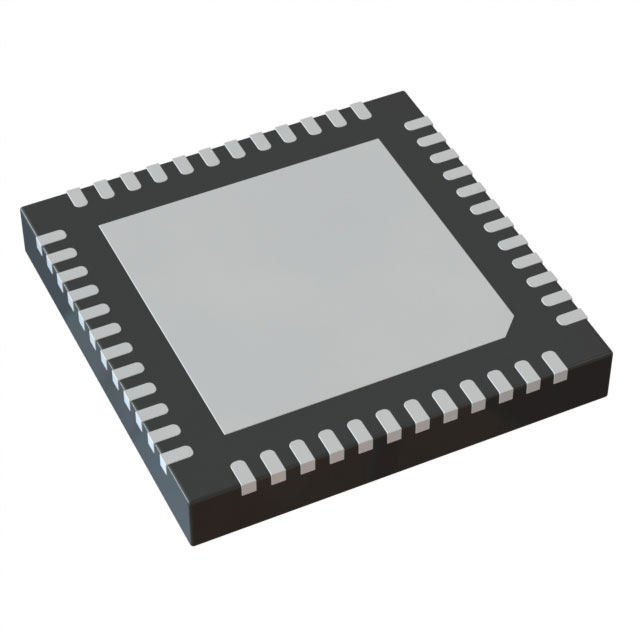

Package / Case: 48-VFQFN Exposed Pad

Supplier Device Package: 48-QFN (7x7)
