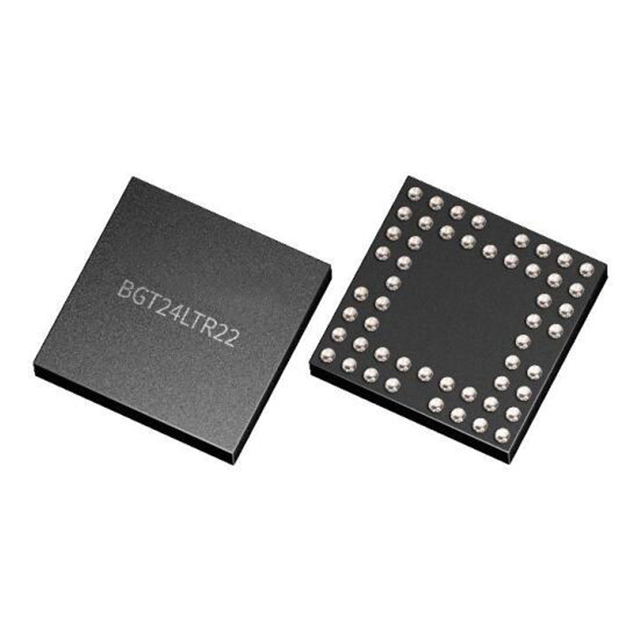

BGT24LTR22 Low Power Multichannel 24GHz Radar MMIC for Smart Sensing Applications

BGT24LTR22 is a low power, low noise multi-channel Silicon Germanium transceiver MMIC for 24 GHz radar applications. It provides building blocks for analog signal generation and reception, operating in the frequency range from 24.0 GHz up to 24.25 GHz.

Product Features

24 GHz transceiver MMIC (2 TX, 2 RX)

Fully integrated low phase noise VCO

Medium power amplifier with variable output power

Integrated power detectors

Homodyne low noise quadrature receivers

Configurable analog baseband amplification stages

Frequency divider

Low power consumption

Multimode operation (Master/Slave)

Fully ESD protected device

Single ended RF terminals

Single supply voltage 1.5V

WFWLB-52-3 pin plastic package sized 3.63mmx3.63mm

Pb-free (RoHS compliant) package

Potential Applications

Smart home appliances

Drone collision avoidance

Traffic monitoring

Security applications
