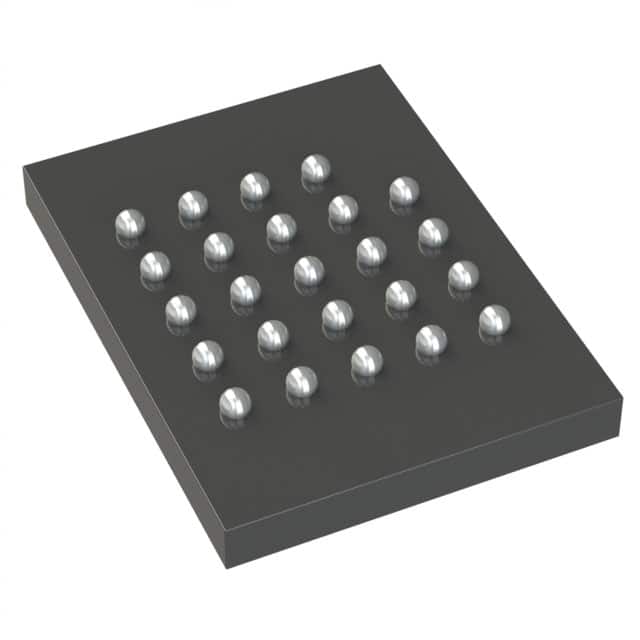

The S27KL0643DPBHI023 64Mb HyperRAM™(PSRAM) device is a high-speed CMOS self-refreshing DRAM with Hyperbus™ interface. The internal structure of its storage array is similar to DRAM, while the external behavior is similar to SRAM. The PSRAM device is suitable for applications that require additional RAM to buffer data, audio, images and video, etc., or for applications that require extended memory to be used as a notepad memory for data-intensive calculations.

specification

Memory type: volatile

Memory format: PSRAM

Technology: PSRAM (Pseudo SRAM)

Storage capacity: 64Mbit

Memory organization: 8M x 8

Memory interface: SPI-8 I/O

Clock frequency: 166 MHz

Write cycle time - word, page: 36ns

Access time: 36 ns

Voltage - Power supply: 2.7V ~ 3.6V

Operating temperature: -40°C ~ 85°C (TA)

Mounting type: Surface mount type

Package/case: 24-VBGA

Supplier Package: 24-FBGA (6x8)
