The MCP1793T-4102H/OT are high voltage, low dropout (LDO) regulators capable of generating 100 mA of output current. The input voltage range is 4.5V to 55V for 12V to 48V power rails and high voltage battery packs. A low UVLO of 2.4V at shutdown allows for automotive cold-start conditions. The regulator output is stabilised by a 2.2 µF ceramic capacitor. The device protects against short-circuit events with a current foldback feature and prevents overheating with thermal shutdown protection.

Product Attributes

Output Configuration: Positive

Output Type: Fixed

Number of Regulators: 1

Voltage - Input (Max): 55V

Voltage - Output (Min/Fixed): 4.1V

Voltage Drop (Max): 1.2V @ 100mA

Current - Output: 100mA

Current - Static (Iq): 45 µA

Current - Supply (Max): 150 µA

PSRR: 80dB ~ 55dB (100Hz ~ 100kHz)

Control Features: Enable

Protection Features: Overcurrent, Over Temperature, Short Circuit, Under Voltage Lockout (UVLO)

Operating Temperature: -40°C ~ 150°C (TJ)

Mounting Type: Surface Mount

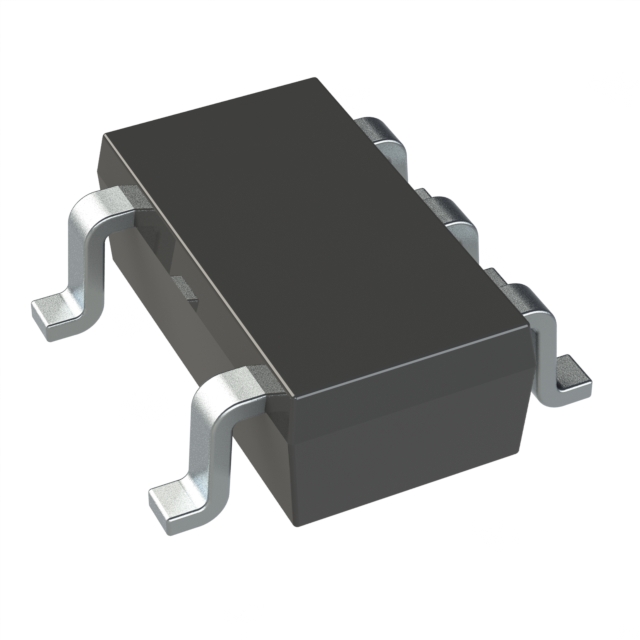

Package/Housing: SC-74A, SOT-753

Supplier Device Package: SOT-23-5

Applications

● Automotive Electronics

● Microcontroller bias

● High-voltage battery packs for power tools, e-bikes, etc.

● Smoke detectors and other alarm sensors
