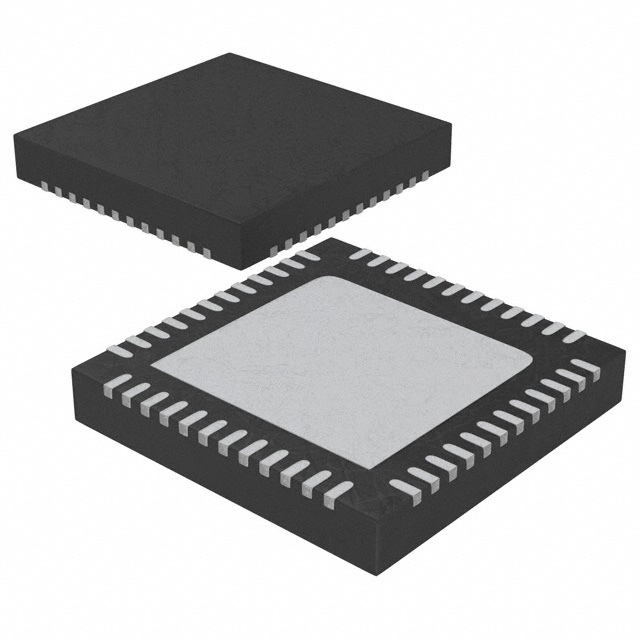

MKW36Z512VHT4 is an ultra low power, highly integrated Bluetooth® Low Energy 5.0 wireless microcontroller.

Product Features

2.4 GHz Bluetooth Low Energy (Bluetooth LE) version 5.0 compliant supporting up to 8 simultaneous hardware connections

Generic FSK modulation

Data Rate: 250, 500 and 1000 kbps

Modulations: GFSK BT = 0.3, 0.5, and 0.7; FSK/MSK

Modulation Index: 0.32, 0.5, 0.7, and 1.0

Typical Receiver Sensitivity (Bluetooth LE 1 Mbps) = –95 dBm

Typical Receiver Sensitivity (250 kbps GFSK-BT=0.5, h=0.5) = –99 dBm

Programmable Transmitter Output Power: –30 dBm to 5 dBm

Low external component counts for low cost application

On-chip balun with single ended bidirectional RF port

256 KB program flash memory plus 256 KB FlexNVM on KW36Z

8 KB FlexRAM supporting EEPROM emulation on KW36Z

Up to 48 MHz Arm® Cortex®-M0+ core

On-chip 64 KB SRAM

Transceiver current (DC-DC buck mode, 3.6 V supply)

Typical Rx Current: 6.3 mA

Typical Tx current: 5.7 mA (0 dBm output)

Low Power Mode (VLLS0) Current: 258 nA Clocks

26 and 32 MHz supported for Bluetooth LE and Generic FSK modes

32.768 kHz Crystal Oscillator

Operating Characteristics

Voltage range: 1.71 V to 3.6 V

Ambient temperature range: –40 to 105 °C

Industrial Qualification
