The NXH3670UK/A1Z wireless gaming headset solution is a low-latency, highly integrated, ultra-low power 2.4GHz wireless transceiver. The device features an embedded MCU for wireless audio streaming for gaming headsets with very low latency. Running a proprietary audio streaming protocol, it is specifically optimised for gaming headset applications. Combined with a simultaneous microphone reverse channel, it is able to provide high quality forward audio streaming with low latency (<20ms). A wireless data channel is also available.

Features

● Bluetooth® Low Power 4.1 certified with dedicated audio streaming extensions

● Programmable TX output power from -10dBm to +4dBm (2dB steps)

● Sensitivity: -90dBm (Bluetooth LE 2Mbps modulation mode) and -94dBm (Bluetooth LE 1Mbps modulation mode)

● Industry's lowest current consumption: RX current <4mA (at 1.2V) TX current <7mA (0dBm output power, at 1.2V)

● Integrated audio interface and audio processing

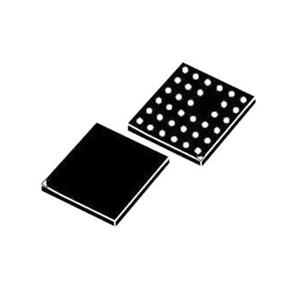

● WLCSP package <7.25mm2, 34 solder balls

● Few external passive components

● Lead-free, compliant with RoHS Directive 2011/65/EU (RoHS 2)

● Operating temperature range: -20°C - +85°C

Applications

● Gaming headsets

● Communication headsets

● Wireless microphone

● Wireless speakers
