The CYW20730A1KFBG standalone baseband processor features a 3-axis quadrature signal decoder and a 10-bit auxiliary ADC with 28 analogue channels. Ideal for use in wireless input device applications including game controllers, keyboards, 3D glasses, remote controls, gesture input devices and sensor devices. The built-in firmware is compliant with the BLUETOOTH® Human Interface Device (HID) profile and Bluetooth Device ID profile specifications.

Product Properties

Type: TxRx only

RF Family/Standard: Bluetooth

Protocol: Bluetooth v5.1

Modulation: GFSK

Frequency: 2.4GHz

Data Rate (Max): 1.5Mbps

Power - Output: 4dBm

Sensitivity: -88dBm

Memory Capacity: 60kB RAM

Serial Interface: I²C, SPI, UART

GPIO: 39

Voltage - Supply: 1.14V ~ 1.26V

Current - Receive: 26.6mA

Current - Transmit: 24mA

Operating Temperature: 0°C ~ 70°C

Mounting Type: Surface Mount

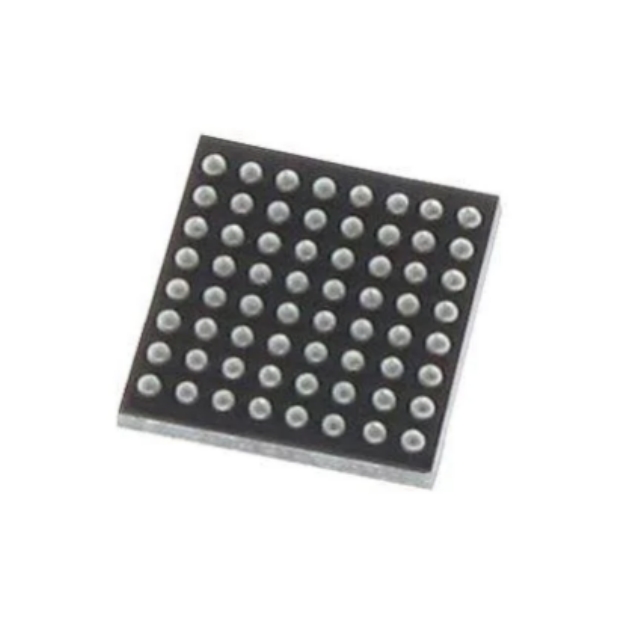

Package/Housing: 64-VFBGA

Supplier Device Package: 64-VFBGA (7x7)

Applications

● Wireless pointing devices: mouse, trackball, gesture control

● Wireless keyboards

● 3D glasses

● Remote control

● Game controllers

● Point-of-sale (POS) input devices

● Remote sensors

● Home automation

● Personal health and fitness monitoring
