Enabling edge computing capabilities for a wide range of IoT applications, the CYW20706UA1KFFB1GT is a Bluetooth® 5.2-compliant, single-chip standalone baseband processor with an integrated 2.4 GHz transceiver. Manufactured in the industry's most advanced 40nm CMOS low-power process, it offers the highest level of integration and eliminates all critical external components, minimising the device footprint and reducing the costs associated with implementing a Bluetooth® solution, making it the optimal solution for embedded and IoT applications. The built-in firmware is compliant with the Bluetooth® low power specification.

Product Properties

Type: TxRx + MCU

RF Family/Standard: Bluetooth

Protocol: Bluetooth v4.2

Frequency: 2.4GHz

Data Rate (Max): 2Mbps

Power - Output: 12dBm

Sensitivity: -96.5dBm

Storage Capacity: 848kB ROM, 352kB RAM

Serial Interfaces: I²C, I²S, SPI, UART

GPIOs: 7

Voltage - Supply: 3.3V

Current - Receive: 12.5mA

Current - Transmit: 26.5mA

Operating Temperature: -30°C ~ 85°C

Mounting Type: Surface Mount

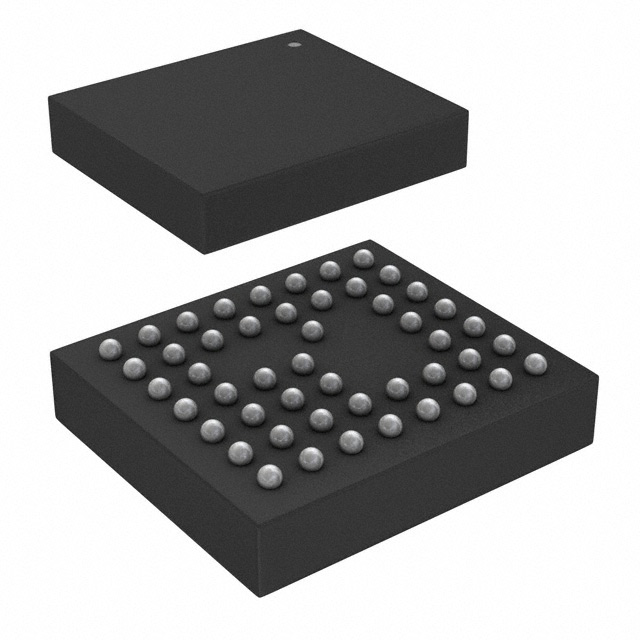

Package/Housing: 49-VFBGA, FCBGA

Supplier Device Package: 49-FCBGA (4.5x4)

Applications

● Home Automation

● Intelligent Buildings

● Lighting

● Industrial Automation

● Sensor Nodes

● Medical
