The IQD005N04NM6CG 6 power MOSFETs are advanced, next-generation, innovative devices with extremely high performance.The OptiMOS 6 series utilises thin-wafer technology to significantly improve performance. The OptiMOS 6 power MOSFETs offer a 30% lower RDS(ON) than comparable products and are optimised for synchronous rectification. In addition, the device has a higher quality factor (FOM - RDS(on) x Qg and Qgd), allowing designers to improve efficiency and reduce system cost. the OptiMOS 6 maintains the advantage of higher power output, where RDS(on) losses are significantly reduced, resulting in further performance improvements across the entire operating range.

Product Attributes

FET Type: N-Channel

Technology: MOSFET (Metal Oxide)

Drain-source voltage (Vdss): 40 V

Current at 25°C - Continuous Drain (Id): 58A (Ta), 610A (Tc)

Drive Voltage (Max Rds On, Min Rds On): 6V, 10V

On-resistance (max) at different Id, Vgs: 0.47 mOhm @ 50A, 10V

Vgs(th) at different Id (max): 2.8V @ 1.449mA

Gate Charge (Qg) (max) at varying Vgs: 161 nC @ 10 V

Vgs (max): ±20V

Input capacitance (Ciss) at varying Vds (max): 12000 pF @ 20 V

Power Dissipation (Max): 3W (Ta), 333W (Tc)

Operating Temperature: -55°C ~ 175°C (TJ)

Mounting Type: Surface Mount

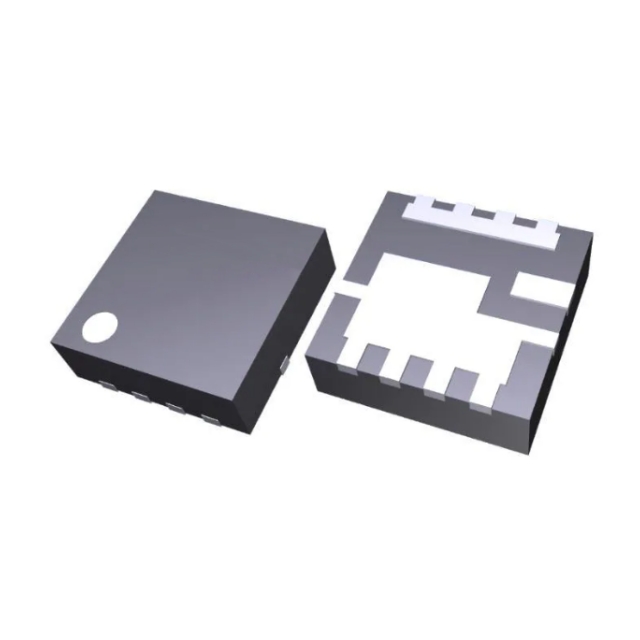

Supplier Device Package: PG-TTFN-9-U02

Package/Housing: 9-PowerTDFN

Applications

● SMPS

● Servers

● Telecommunications

● Chargers

● Drives

● Remote Control Helicopter

● Wireless charging
