The TLE98442QXXUMA1 motor/relay driver IC product family integrates an ARM® Cortex®-M0 microcontroller core along with a relay driver, high-side switch, LIN transceiver, and power supply system to allow the device to be operated from vehicle battery power. The peripheral set includes a 10-bit ADC with 13 multiplexed analogue inputs capable of handling up to five high voltage monitor inputs, six low voltage inputs, and two high voltage inputs to detect battery voltage and device power. The device also features an 8-bit ADC with 7 multiplexed inputs for voltage and temperature monitoring.

Product Attributes

Core processor: ARM® Cortex®-M0

Programme memory type: Flash (64kB)

RAM Size: 4K x 8

Interfaces: LIN, SSI, UART

Number of I/O: 10

Voltage - Supply: 3V ~ 28V

Operating Temperature: -40°C ~ 150°C (TJ)

Mounting Type: Surface Mount

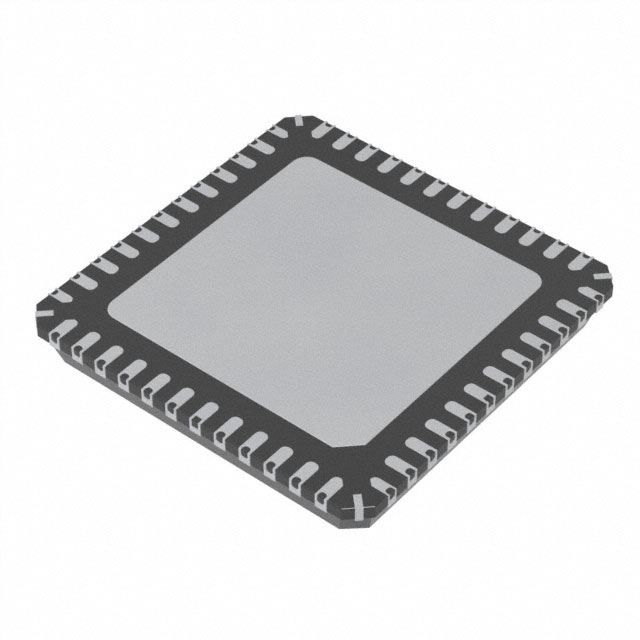

Package/Shell: 48-VFQFN Exposed Pad

Supplier Device Package: PG-VQFN-48-31

Applications

● Window Lifter

● Sunroof

● Wiper

● Electric fan

● Electric pump
