The TLE9879QTW40 is a single-chip three-phase motor driver that integrates the industry-standard ARM® Cortex-M3 core to enable advanced motor control algorithms such as field-oriented control. It includes six fully integrated NFET drivers optimized to drive three-phase motors with six external power NFets, a charge pump to support low-voltage operation and programmable currents, and current slope control to optimize EMC behavior.

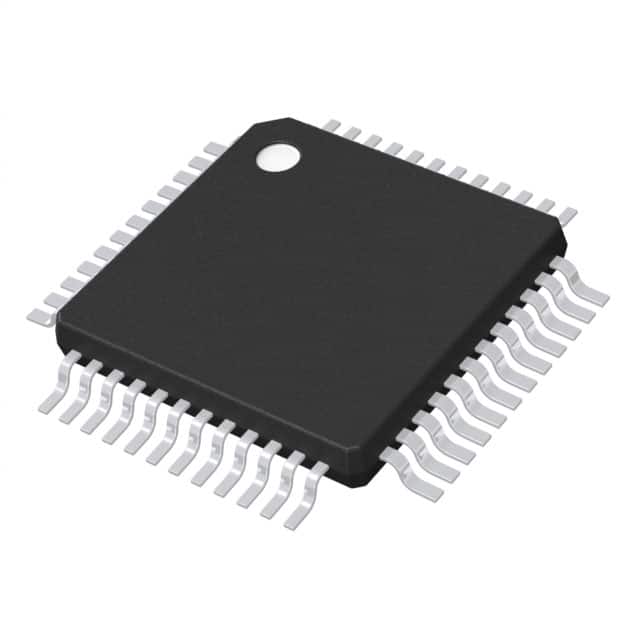

Device: TLE9879QTW40XUMA1

Product Category: ARM Microcontroller - MCU

Core processor: ARM® Cortex®-M3

Kernel specification: 32-bit single-core

Speed: 40MHz

Connection capability: LINbus, SPI, SSC, UART/USART

Peripherals: Undervoltage detection/reset, DMA, POR, PWM, WDT

Number of I/ OS: 10

Program storage capacity: 128KB (128K x 8)

Program memory type: Flash

EEPROM capacity: 4K x 8

RAM size: 6K x 8

Voltage - power supply (Vcc/Vdd) : 5.5V ~ 27V

Data converter: A/D 5x10b trigonometric integration

Oscillator type: Internal

Operating temperature: -40°C ~ 175°C (TJ)

Mounting type: Surface mount type

Package/housing: 48-TQFP bare pad

Supplier Package: 48-TQFP (7x7)

Basic product number: TLE9879
