Trade Name:TJA1124AHG/1Z
Data Manual:TJA1124AHG/1Z.pdf
Brand:NXP
Particular Year:23+

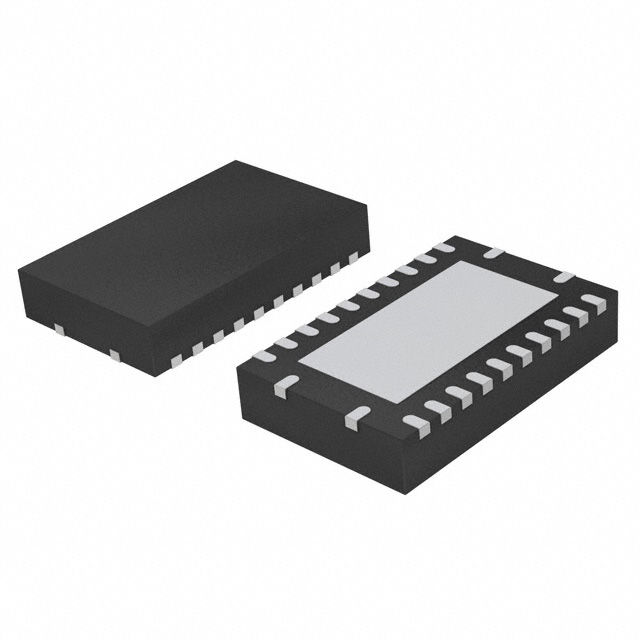

Package:DHVQFN24
Delivery Date:New and Original
Stock: 1000pcs
The TJA1124AHG/1Z is a 4-channel Local Interconnect Network (LIN) master channel device. It connects the LIN master protocol controller to the physical bus in a LIN network. each of the four channels contains a LIN transceiver and LIN master terminal.
The TJA1124AHG/1Z is intended for in-vehicle subnetworks using baud rates up to 20 kBd and is compliant with LIN 2.0, LIN 2.1, LIN 2.2, LIN 2.2A, ISO 17987-4:2016 (12 V LIN), and SAE J2602-1.
Product attributes
Type: Transceiver
Protocol: LIN
Number of drivers/receivers: 4/4
Duplex: Half
Data Rate: 20kBaud
Voltage - Supply: 5V ~ 28V
Operating Temperature: -40°C ~ 150°C (TJ)
Mounting Type: Surface Mount
Package/Shell: 24-VFQFN Exposed Pad
Supplier Device Package: 24-DHVQFN (5.5x3.5)
Applications
Automotive Electronics
Heating, Ventilation and Air Conditioning (HVAC)
Parking Assistance
Ambient lighting
Body Control
