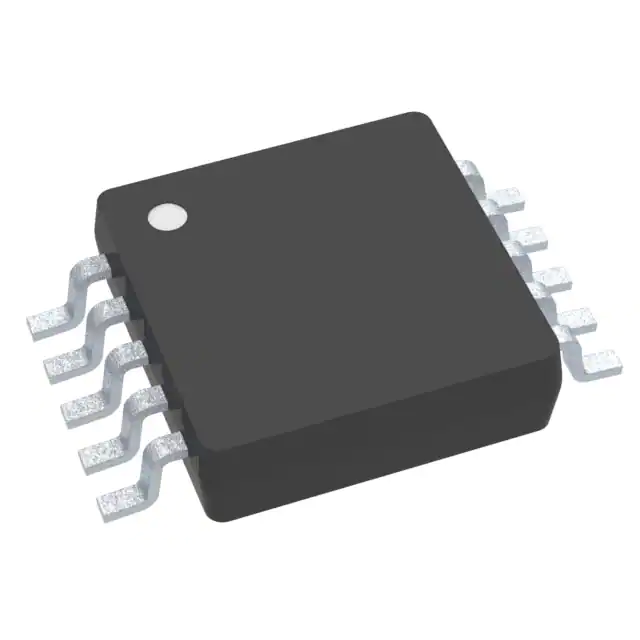

The INA2181-Q1 current sense amplifiers are designed for cost-optimised solutions. These devices are a series of bi-directional current sense amplifiers (also known as current shunt monitors) that sense the voltage drop across the current sense resistors over a common mode voltage range of -0.2V to +26V independent of the supply voltage. This matched gain resistor network minimises gain errors and reduces temperature drift.

Features

- Compliant with AEC-Q100 standard for automotive applications

- Temperature class 1: -40°C ≤ TA ≤ +125°C

- HBM ESD classification class 2

- CDM ESD classification class C6

- Common mode range (VCM): -0.2V to +26V

- High bandwidth: 350 kHz (A1 devices)

- Offset voltage:

- ±150µV (max), VCM = 0V

- ±500µV (max), VCM = 12V

- Output swing rate: 2V/µs

- Bidirectional current sense function

- Accuracy:

- ±1% gain error (max)

- 1µV/°C temperature drift (max)

- Gain options:

- 20V/V (A1 devices)

- 50V/V (A2 devices)

- 100V/V (A3 devices)

- 200V/V (A4 devices)

- Transient current: 260µA maximum (INA181-Q1)

Applications

- Motor control

- Battery monitoring

- Power management

- Lighting control

- Overcurrent detection
